Seat Switch Replacement - Power

Seat Switch Replacement - Power

Removal Procedure

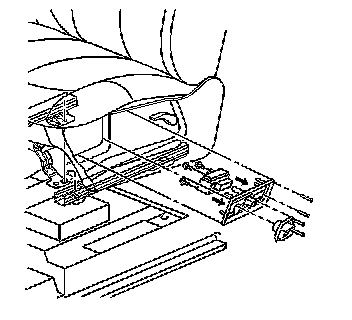

1. Remove the power seat switch bezel from the seat.

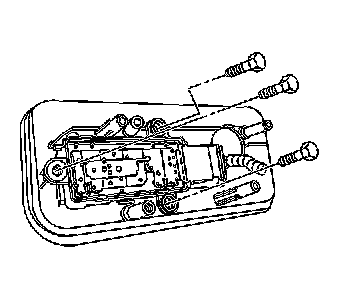

2. Remove the power seat switch to bezel screws.
3. Remove the power seat switch.

Installation Procedure

Notice: Refer to Fastener Notice.




1. Install the power seat switch to the bezel.

Tighten the screws to 2 N.m (18 lb in).




2. Install the power seat switch to bezel screws.
3. Install the power seat switch bezel to the seat.
