Power Seat Connector End Views



Power Seat Connector End Views

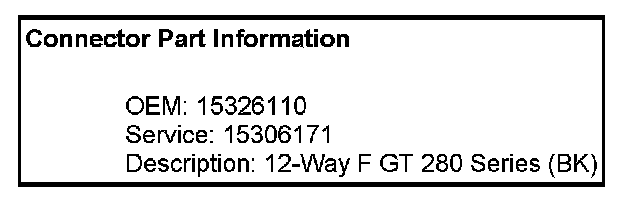

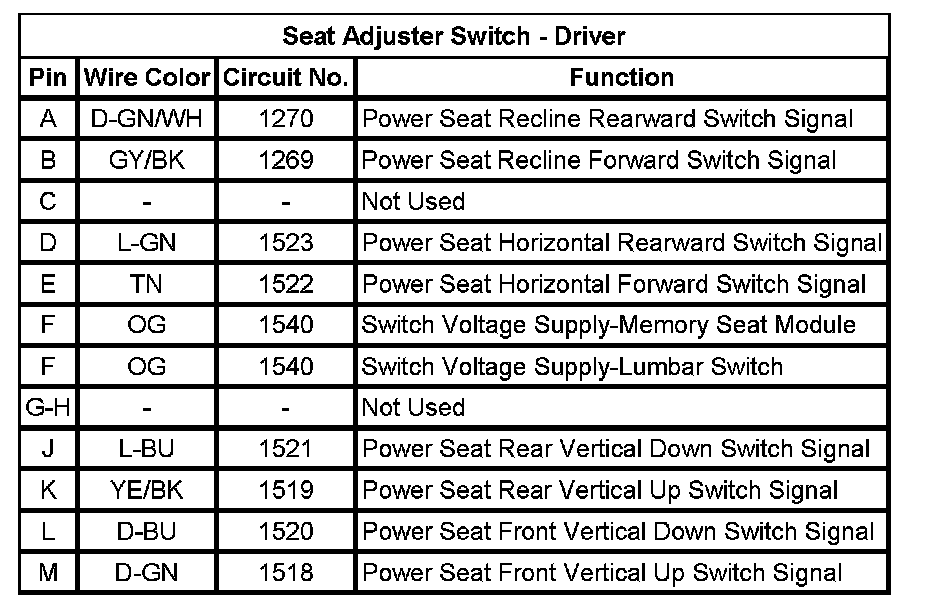

Seat Adjuster Switch - Driver

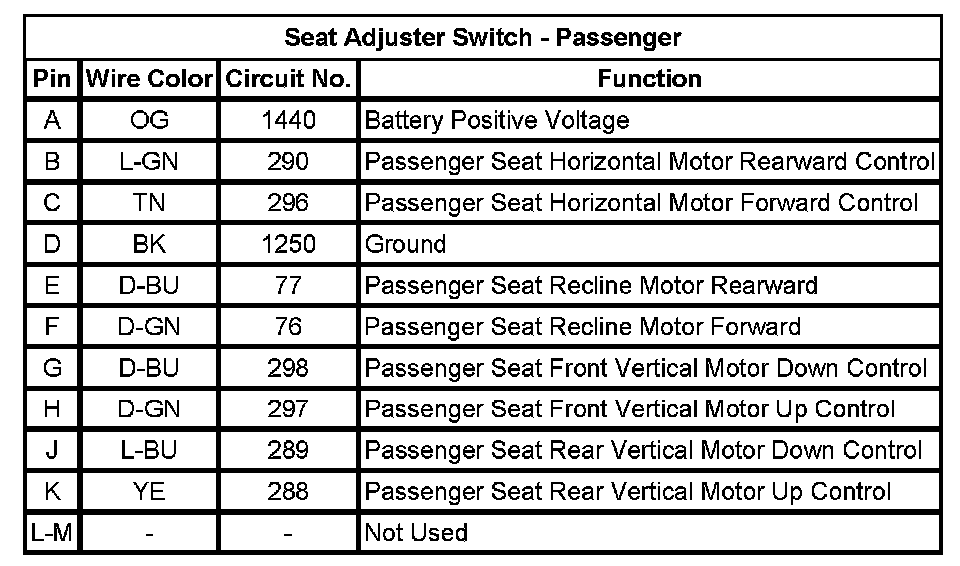

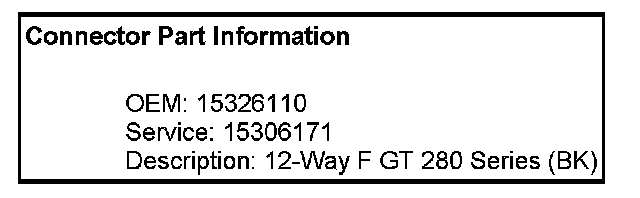

Seat Adjuster Switch - Passenger

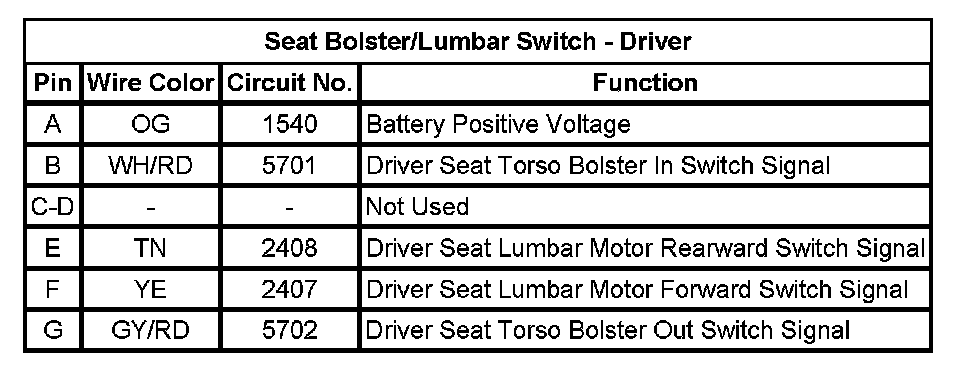

Seat Bolster/Lumbar Switch - Driver

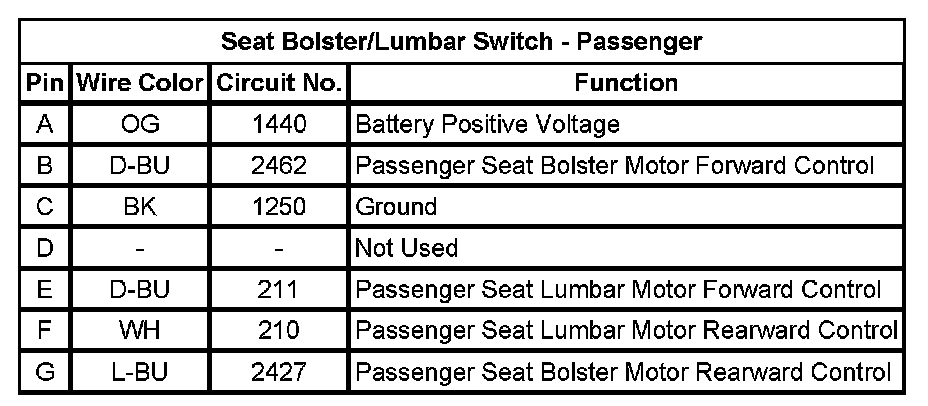

Seat Bolster/Lumbar Switch - Passenger
