Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Seat Switch >> Diagrams >> Heated/Cooled Seat Connector End Views

Heated/Cooled Seat Connector End Views



Heated/Cooled Seat Connector End Views

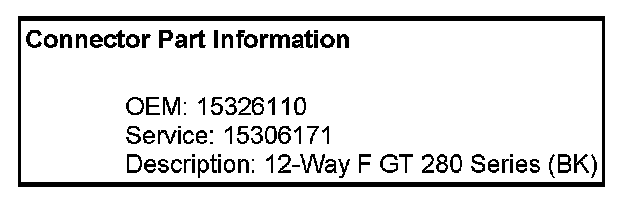

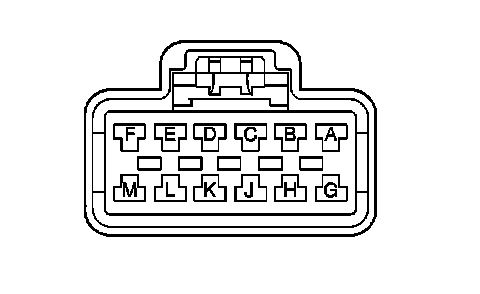

Seat Adjuster Switch - Driver

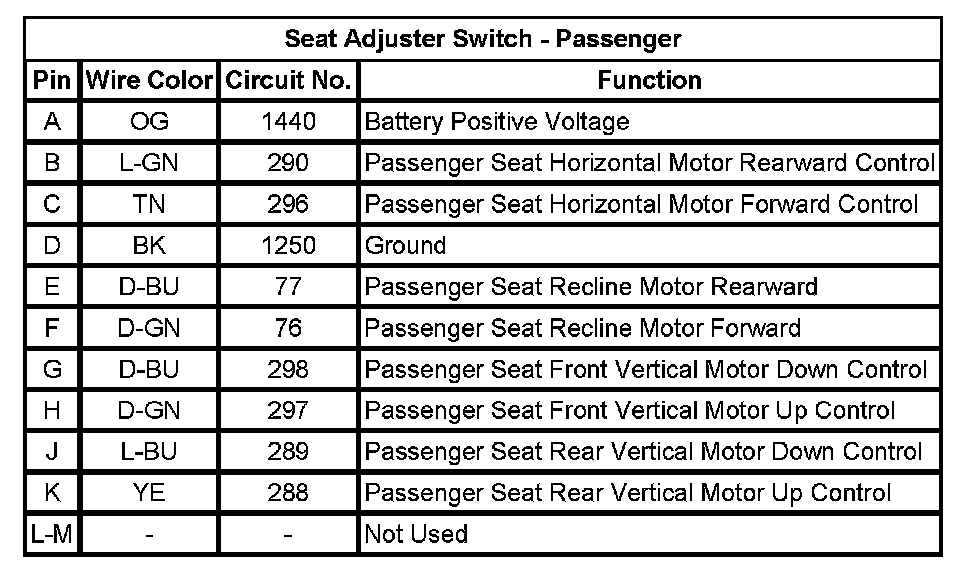

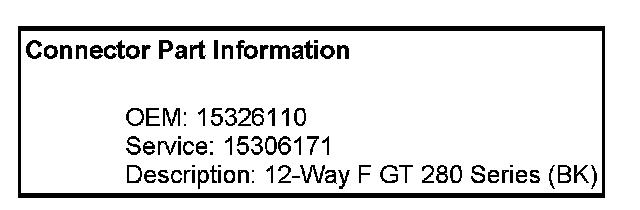

Seat Adjuster Switch - Passenger

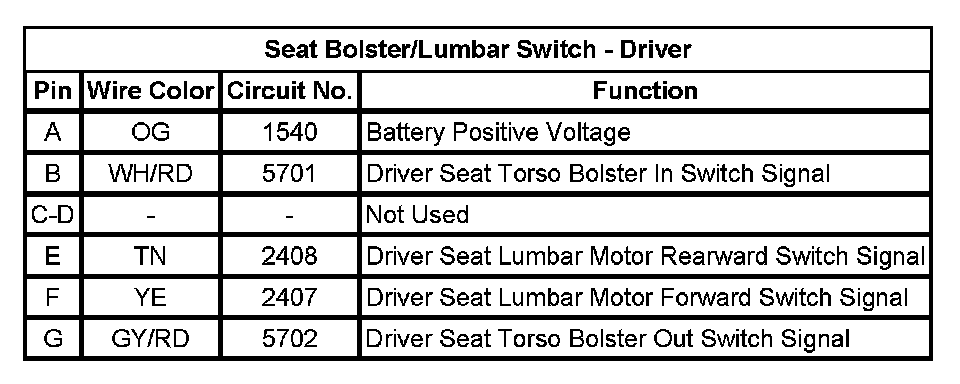

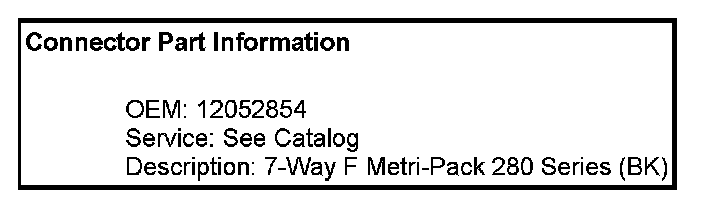

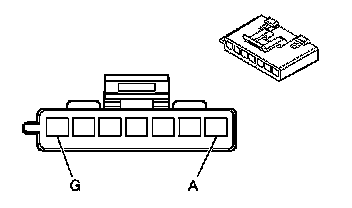

Seat Bolster/Lumbar Switch - Driver

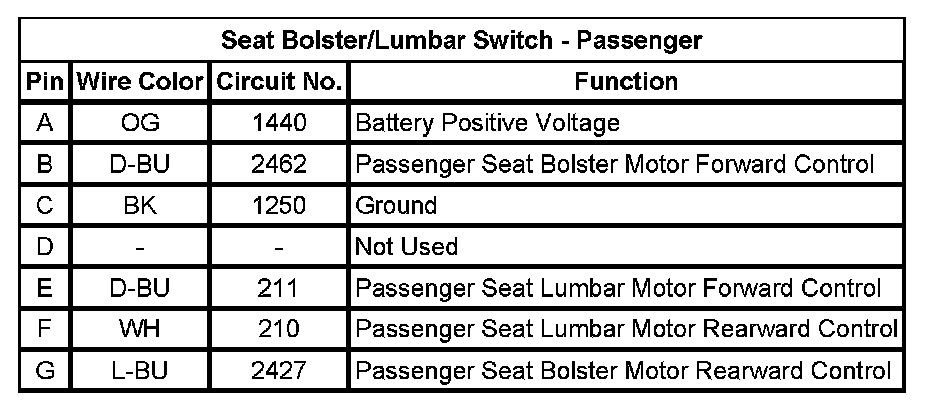

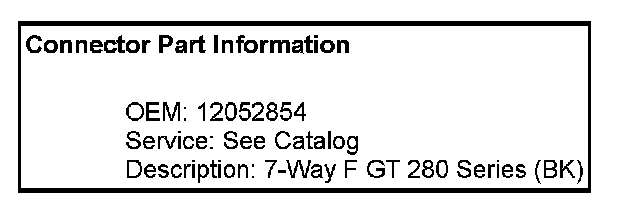

Seat Bolster/Lumbar Switch - Passenger
