Power Seat Connector End Views



Power Seat Connector End Views

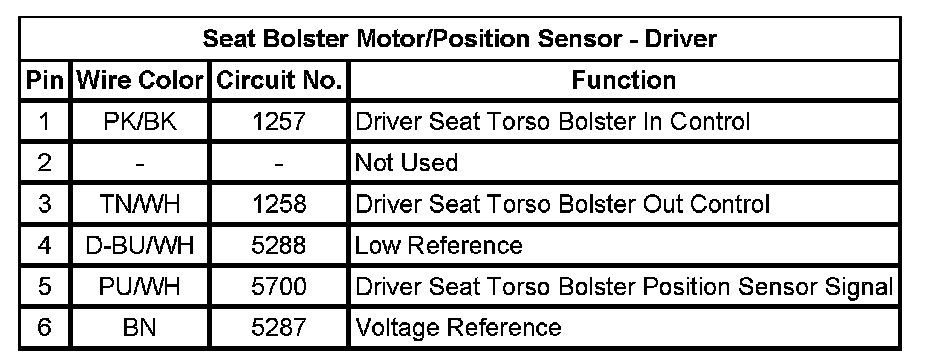

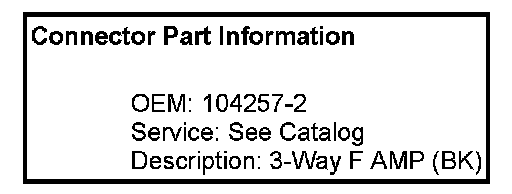

Seat Bolster Motor/Position Sensor - Driver

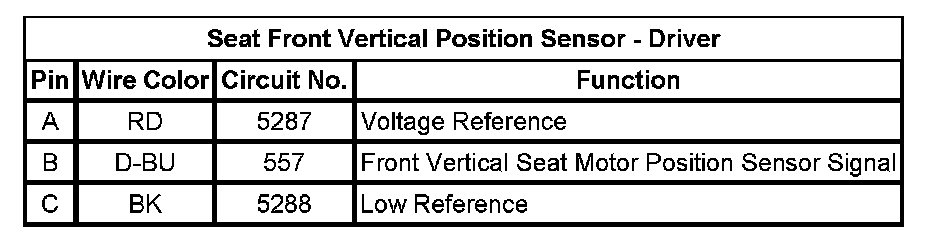

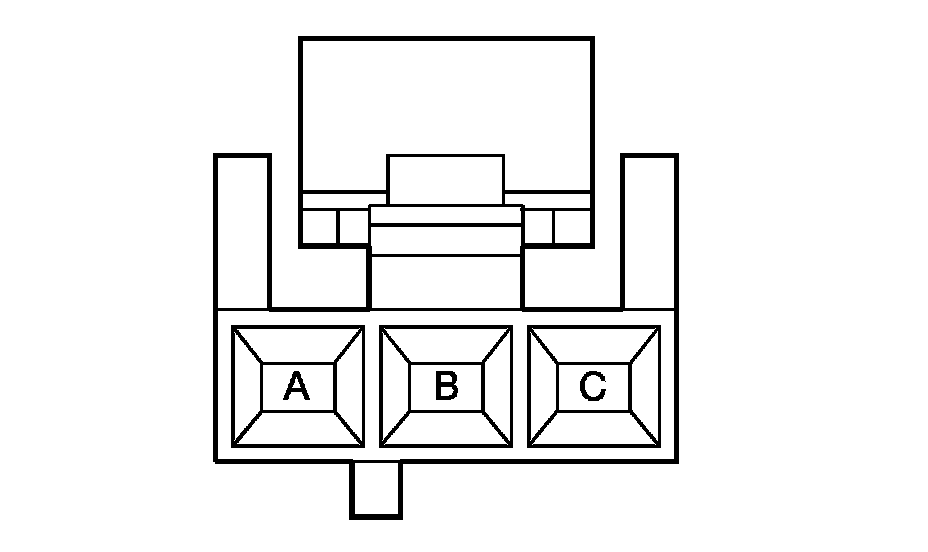

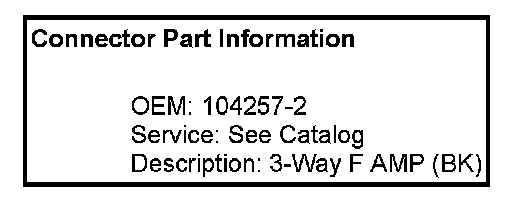

Seat Front Vertical Position Sensor - Driver

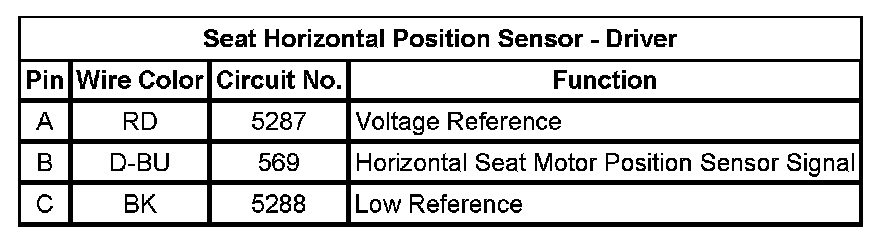

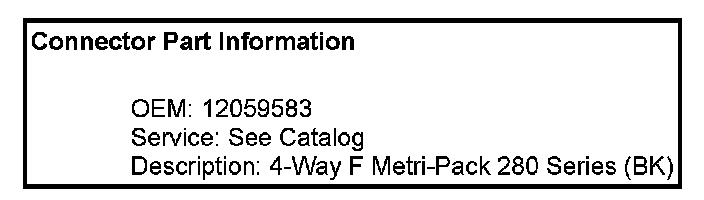

Seat Horizontal Position Sensor - Driver

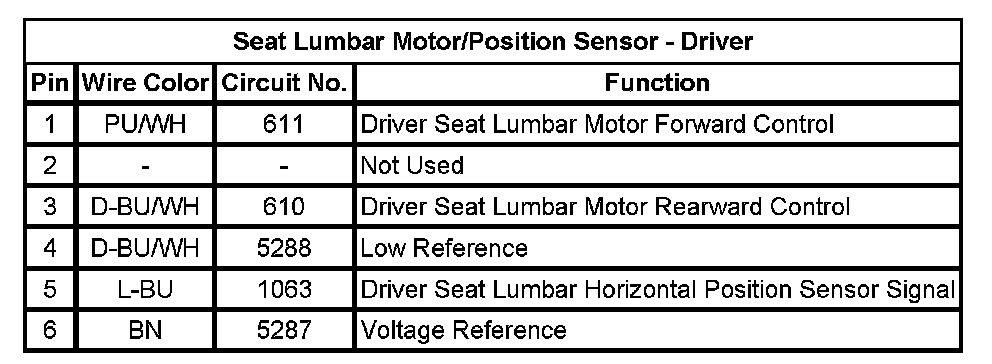

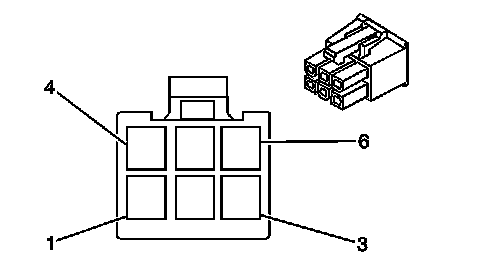

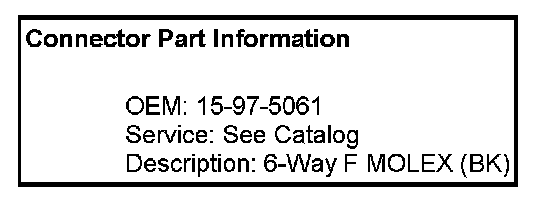

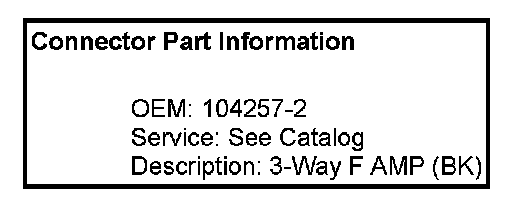

Seat Lumbar Motor/Position Sensor - Driver

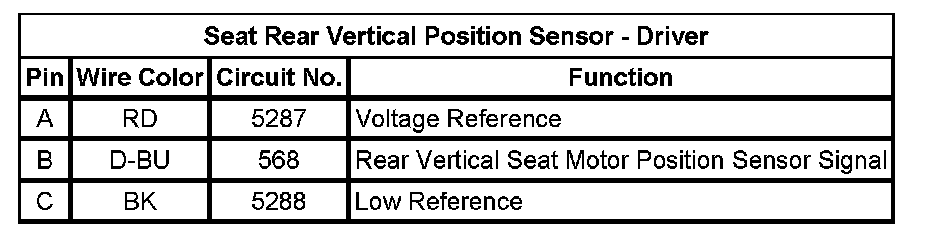

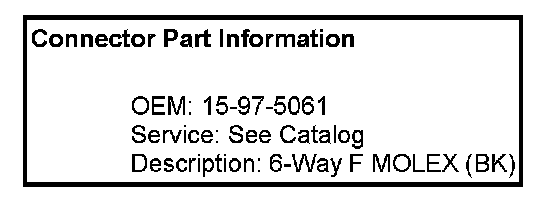

Seat Rear Vertical Position Sensor - Driver














Seat Recline Position Sensor - Driver
