Entertainment/Communication Connector End Views



Entertainment/Communication Connector End Views

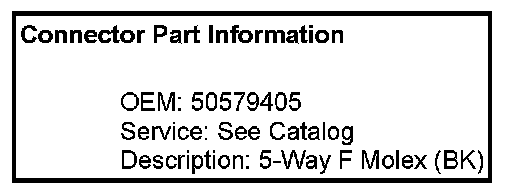

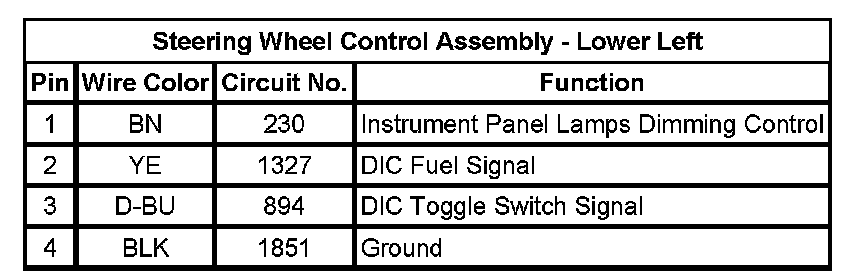

Steering Wheel Control Assembly - Lower Left

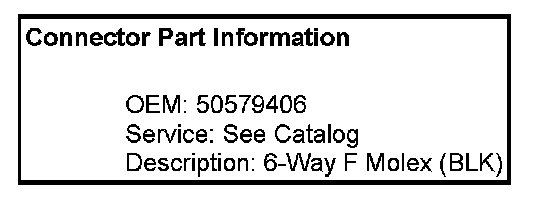

Steering Wheel Controls - Right (UK3):

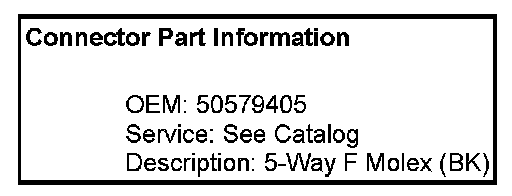

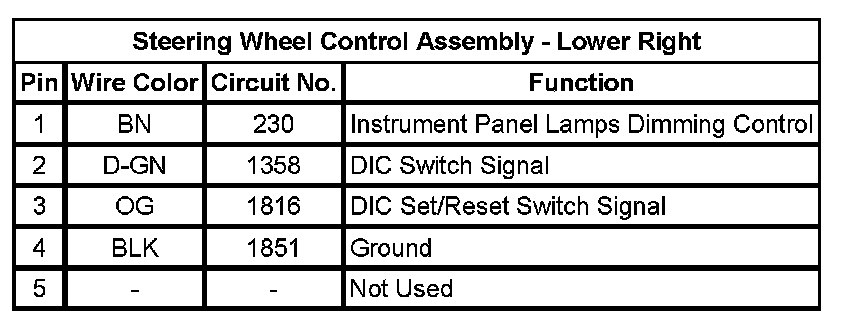

Steering Wheel Control Assembly - Lower Right

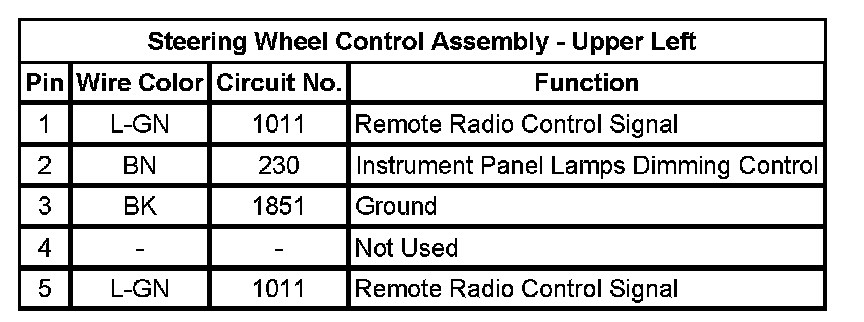

Steering Wheel Control Assembly - Upper Left

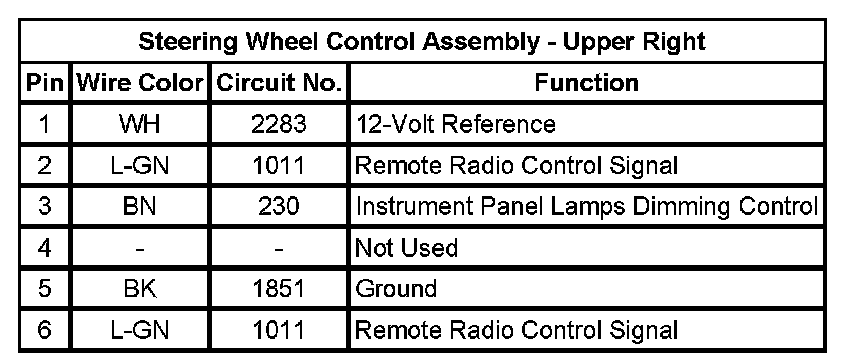

Steering Wheel Control Assembly - Upper Right
