Impact Sensor: Locations

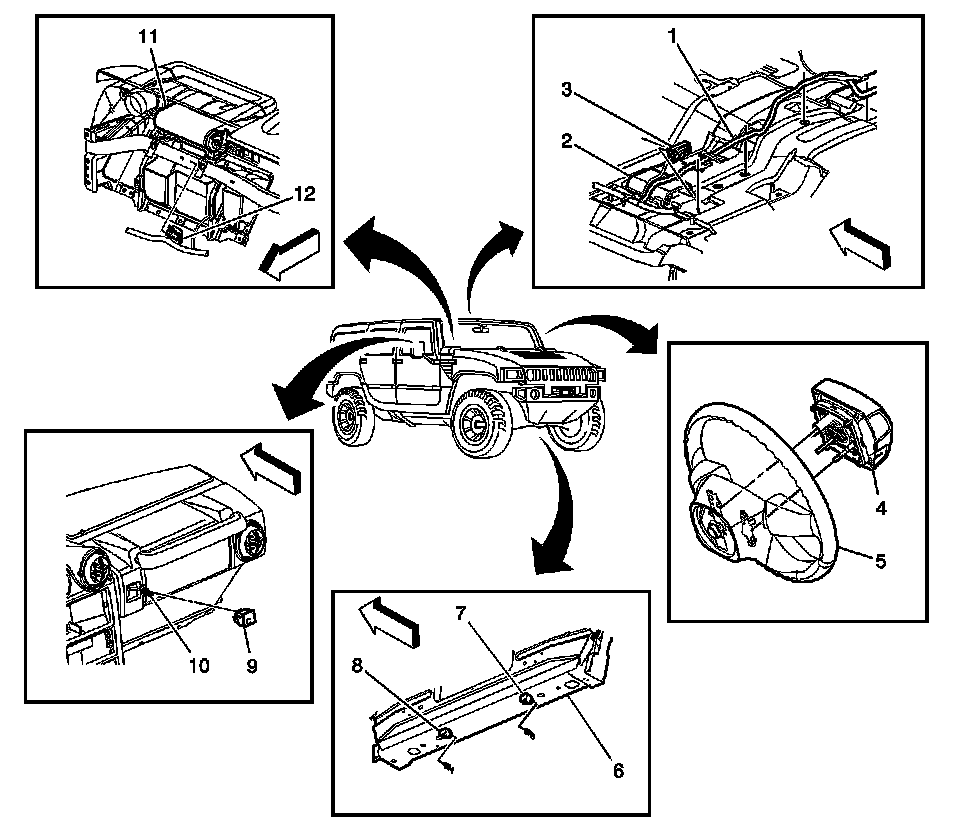

SIR Component Views

SIR Components




1 - Body Harness
2 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
3 - Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
4 - Inflatable Restraint Steering Wheel Module
5 - Steering Wheel
6 - Radiator Support
7 - Inflatable Restraint Front End Sensor - Left
8 - Inflatable Restraint Front End Sensor - Right
9 - Inflatable Restraint I/P Module Disable Switch
10 - Inflatable Restraint I/P Module Disable Switch Connector
11 - Inflatable Restraint I/P Module
12 - Inflatable Restraint I/P Module Connector
