Inflatable Restraint Instrument Panel Module Replacement

Inflatable Restraint Instrument Panel Module Replacement

Removal Procedure

1. Remove trim panel replacement-I/P accessory right- from the I/P substraight (1).

Caution: Refer to Restraint System Service Precautions.

Caution: Refer to SIR Inflator Module Handling and Storage Caution.

2. Disable the SIR system (2). Refer to SIR Disabling and Enabling.




3. Remove the connector from the I/P.




4. Remove the inflatable restraint I/P module retaining bolts.
5. Ensure that you keep a firm hold on the I/P module.

Installation Procedure

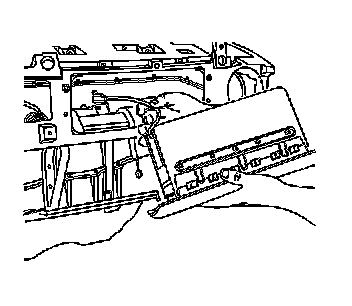

1. Install the inflatable restraint I/P module (1) to the mounting bracket through the front of the instrument panel.

Notice: Refer to Fastener Notice.

2. Install the fasteners (2) to the inflatable restraint I/P module.

Tighten the fasteners to 10 N.m (89 lb in).

3. Enable the SIR system. Refer to SIR Disabling and Enabling.
4. Install the yellow connector to the I/P.
5. Install the trim panel to the substraight.
