Module Assembly Electronic Suspension Control Replacement (Dual Compressors)

Module Assembly Electronic Suspension Control Replacement (Dual Compressors)

Removal Procedure

Caution: Do NOT remove an air supply pipe in an attempt to depressurize the air suspension. Always follow the Air Suspension Depressurization Procedure in Air Suspension. Failure to follow this procedure may cause personal injury or damage to the vehicle.




1. Remove the compressor assembly from the vehicle and place on a bench.

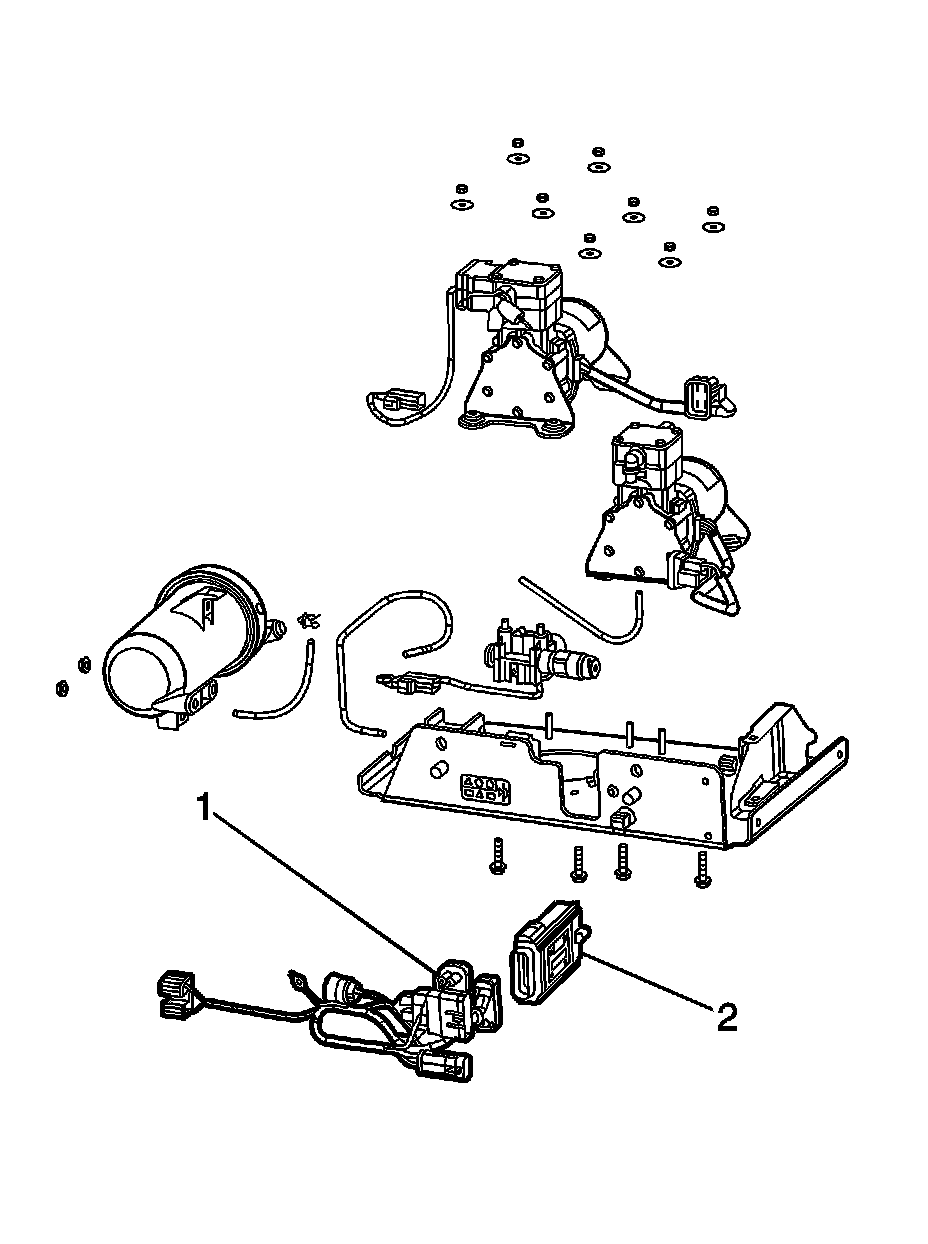

2. Disconnect the electrical connection (1).
3. Remove the control module (2) from the bracket.

Installation Procedure




1. Install the control module (2) to the bracket.
2. Connect the electrical connection (1).
3. Install the compressor assembly to the vehicle.
4. Perform the suspension position calibration procedure. Refer to Control Module References for programming and setup information.
