Seat Temperature Control Module: Locations

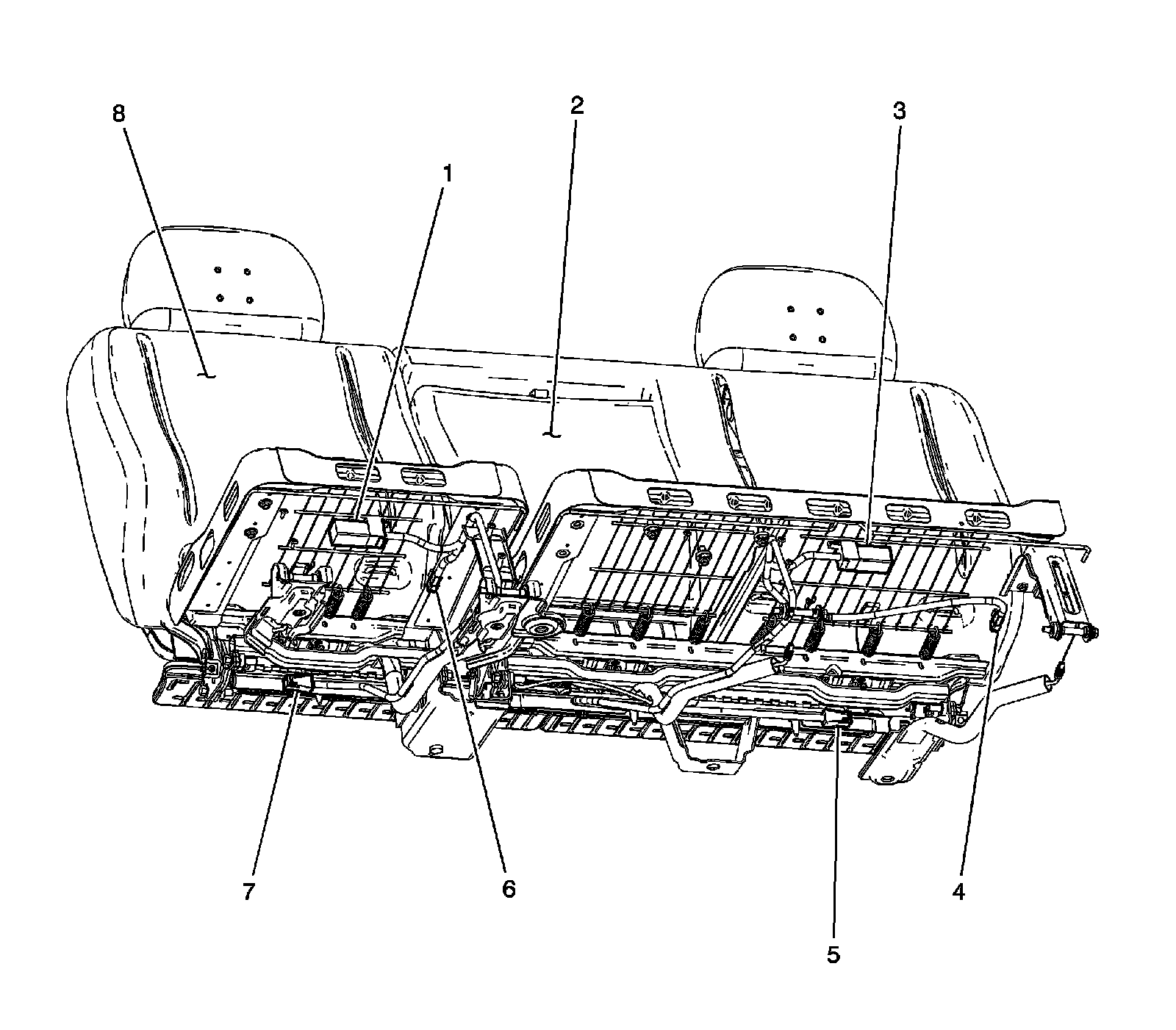

Heated/Cooled Seat Component Views

2nd Row Heated Seat Components (KA7)




1 - Heated Seat Control Module-RR
2 - 2nd Row Seat-LR
3 - Heated Seat Control Module-LR
4 - Heated Seat Element Connector-LR
5 - C320
6 - Heated Seat Element Connector-RR
7 - C380
8 - 2nd Row Seat-RR
