Heated/Cooled Seat Connector End Views
Heated/Cooled Seat Connector End Views
Heated/Cooled Seat Connector End Views

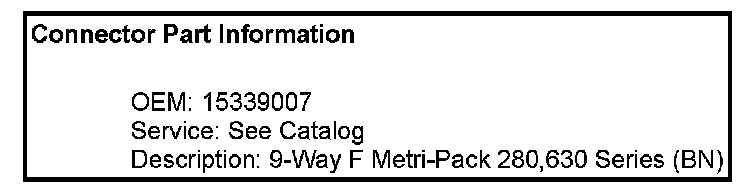

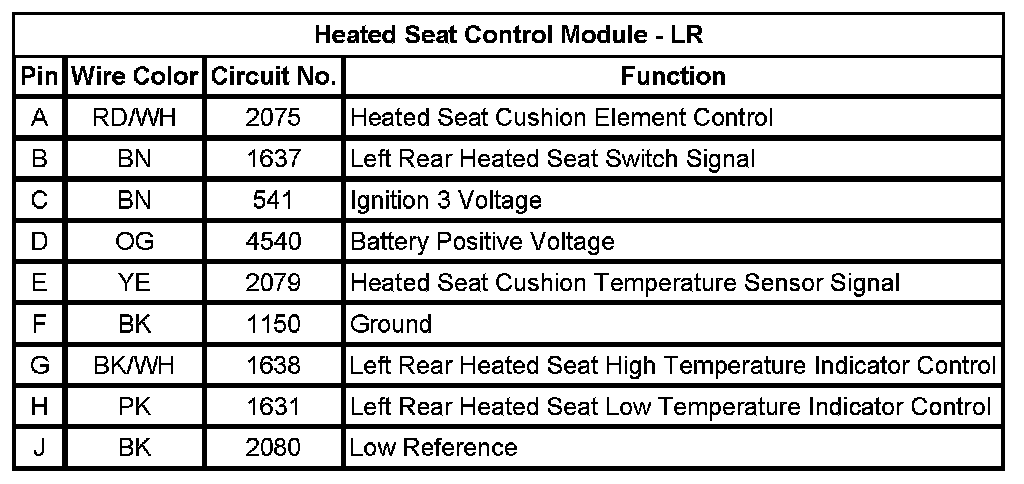

Heated Seat Control Module - LR

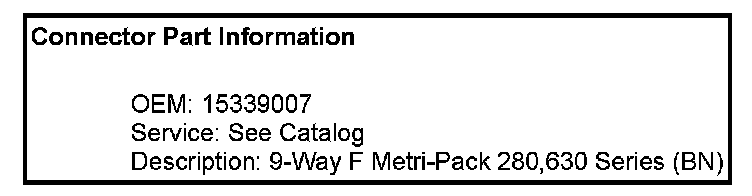

Heated Seat Control Module - RR
