Actuator: Locations

Rear Axle Component Views

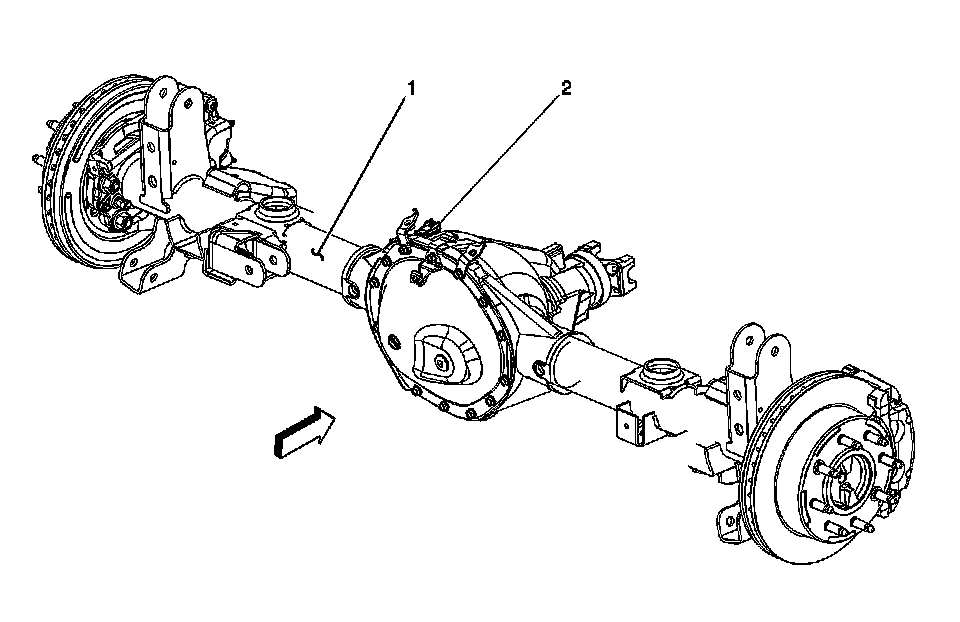

Rear Differential Lock Actuator

Rear Differential Lock Actuator:

1 - Rear Axle
2 - Rear Differential Lock Actuator
