Fuel Level Sensor Replacement

Fuel Level Sensor Replacement

Removal Procedure




1. Remove the fuel sender.
2. Place the fuel sender on a clean work surface.

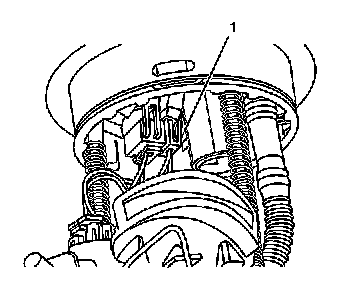

3. Disconnect the fuel level sensor electrical connector (1) from the module connector.




4. Remove the fuel level sensor retaining clip.

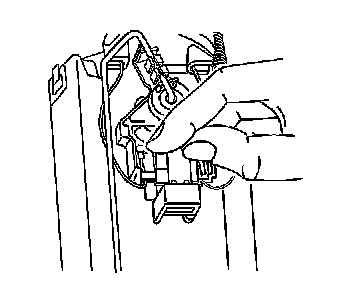

5. Squeeze the retaining tabs together in order to slide the fuel lever sensor off of the reservoir.

Installation Procedure

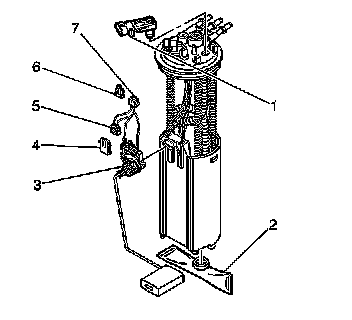

1. Slide the fuel lever sensor (3) onto the reservoir until the retaining tabs snap into place.




2. Connect the fuel level sensor electrical connector (1) to the module connector.
3. Install the fuel sender.
