Accelerator Pedal Position Sensor: Locations

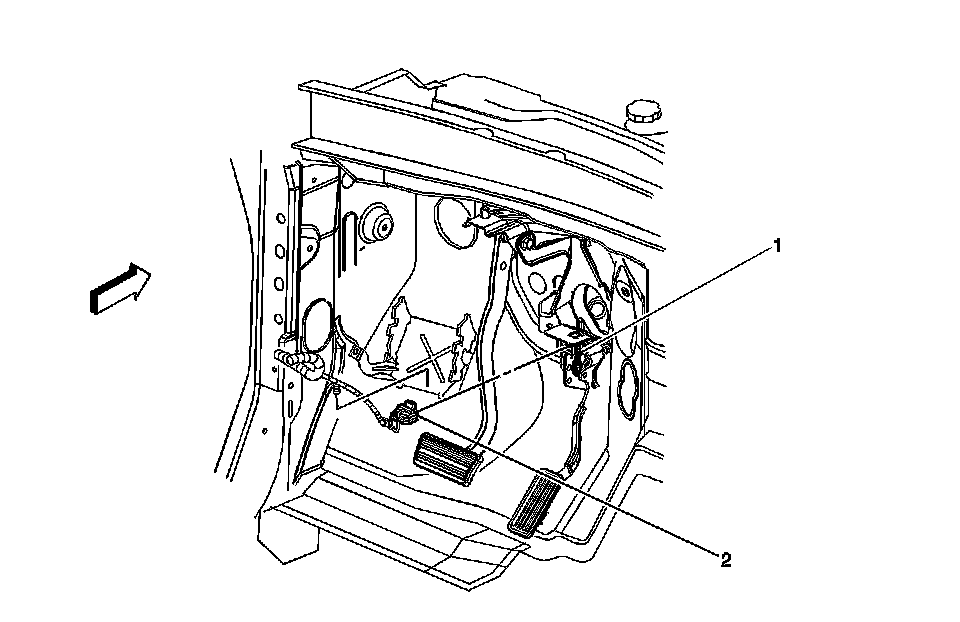

Engine Controls Component Views

Lower Left of the I/P




1 - APP Sensor
2 - APP Sensor Connector
