C900 - C999

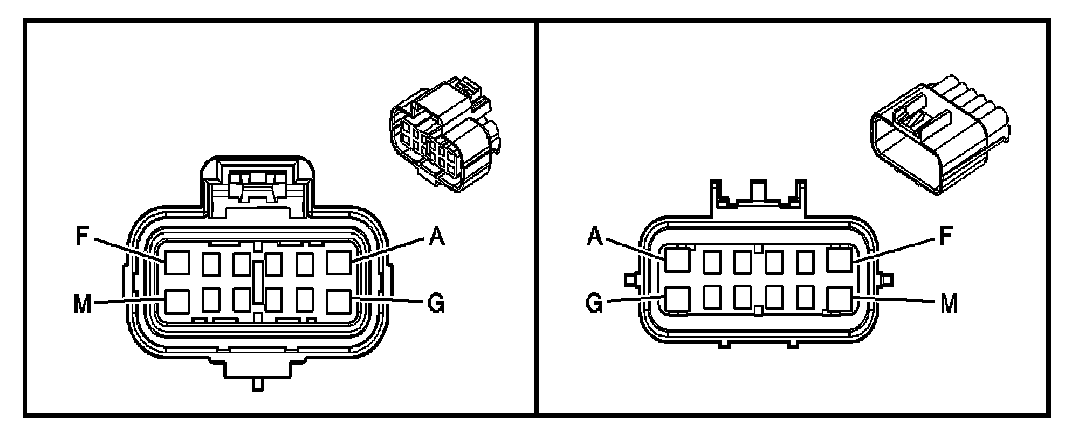

Inline Harness Connector End Views

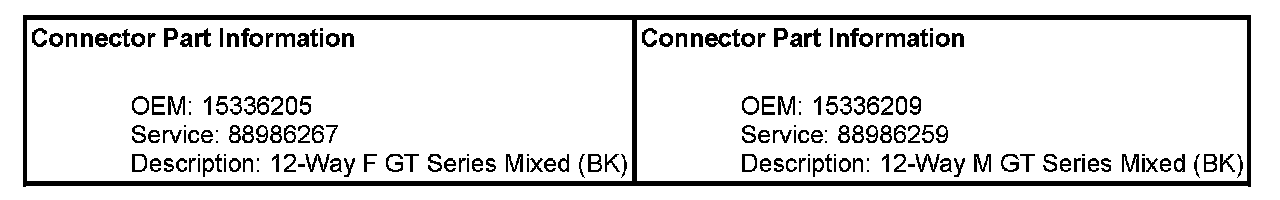

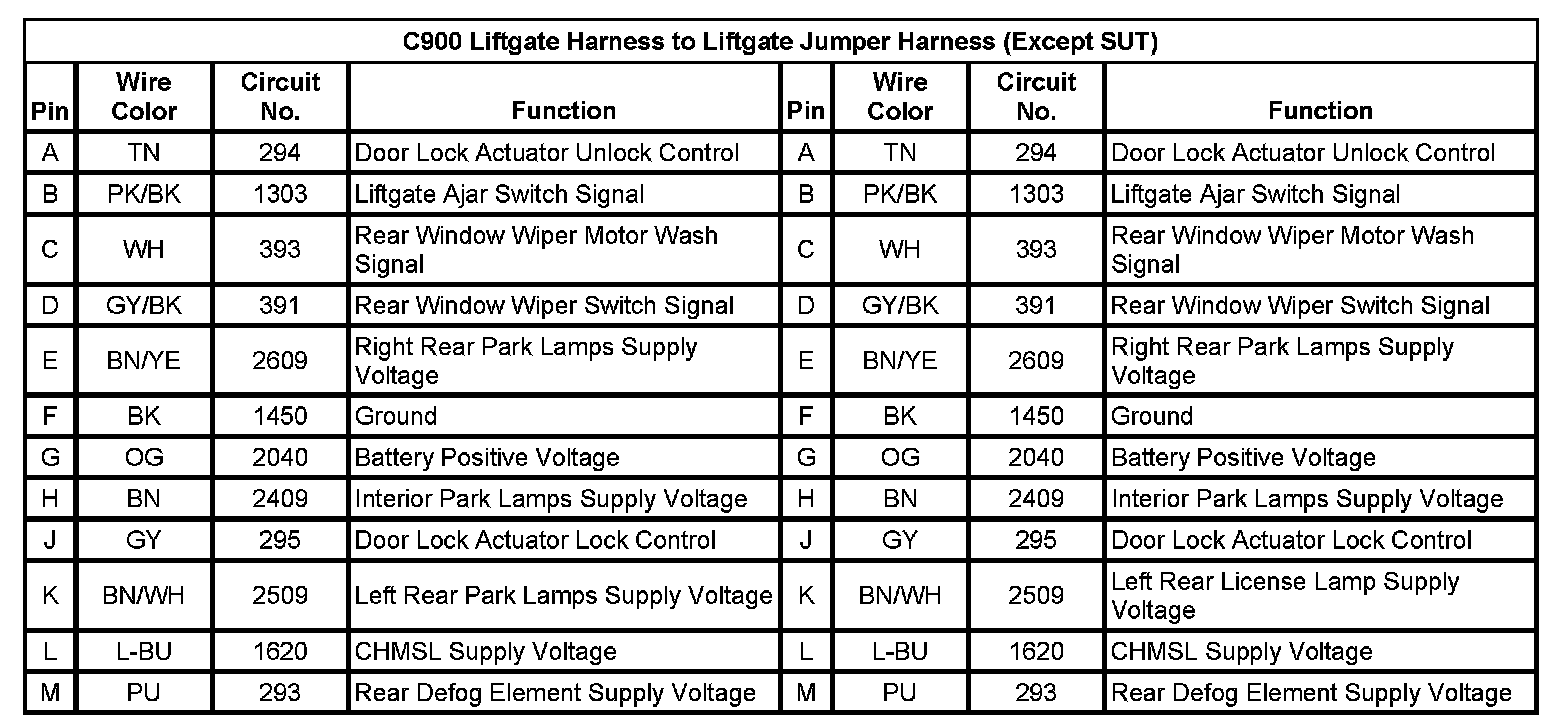

C900 Liftgate Harness to Liftgate Jumper Harness (Except SUT)
