Park/Turn Signal Lamp Replacement (SUV)

Park/Turn Signal Lamp Replacement (SUV)

Removal Procedure

1. Remove the grille.




2. Open the hood.
3. Remove the retaining nuts.

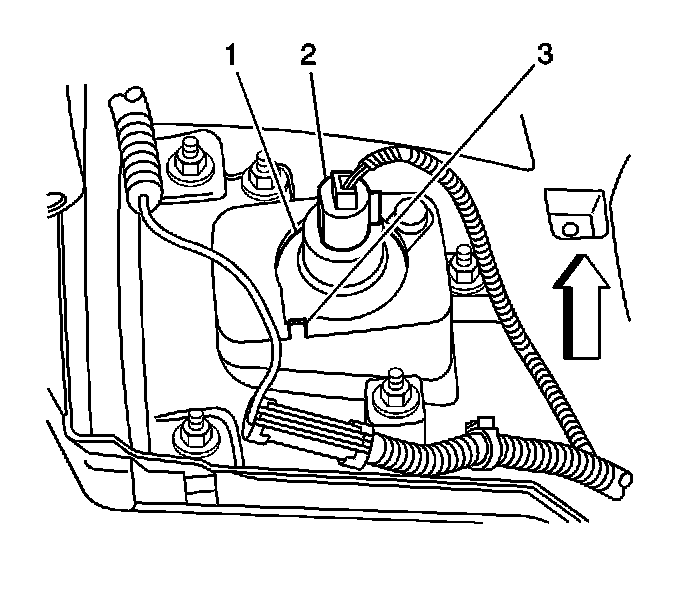

4. Disconnect the electrical harness connector (2).
5. Disengage the retaining clips.
6. Close the hood.
7. Remove the lamp.
8. Remove the bulb socket by turning the socket counterclockwise.
9. Remove the bulb.

Installation Procedure

1. Install the bulb.




2. Install the bulb socket (6) by turning the socket clockwise.
3. Install the lamp.
4. Open the hood.

Notice: Refer to Fastener Notice.

5. Install the retaining nuts (2).

Tighten the nuts to 6 N.m (53 lb in).

6. Connect the electrical harness.
7. Close the hood.
8. Install the grille.
