Fog/Driving Lamp Relay: Diagrams



Lighting Systems Connector End Views

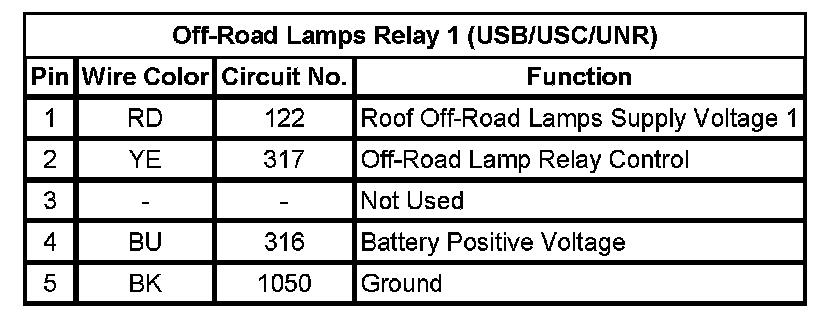

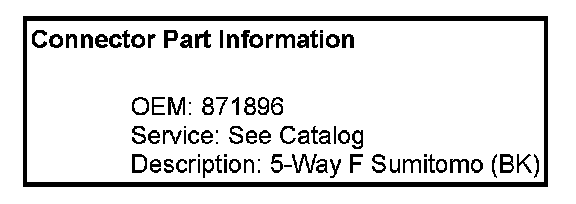

Off-Road Lamps Relay 1 (USB/USC/UNR)

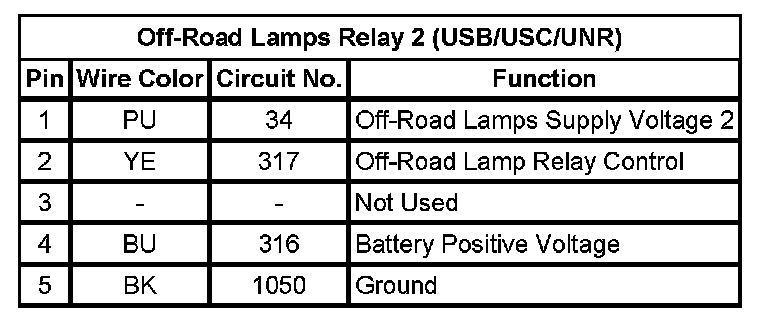

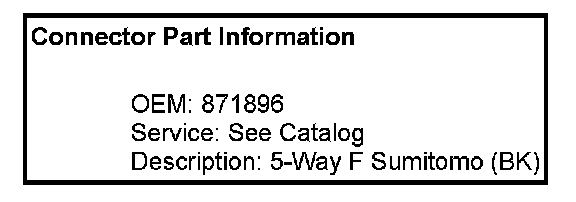

Off-Road Lamps Relay 2 (USB/USC/UNR)

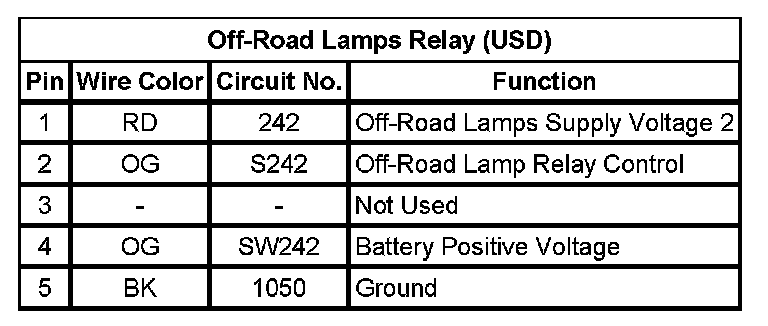

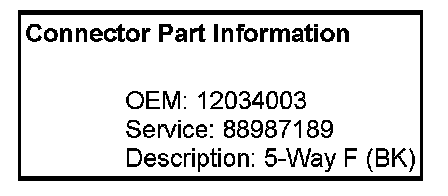

Off-Road Lamps Relay (USD)
