Front Side Marker Lamp Replacement

Front Side Marker Lamp Replacement

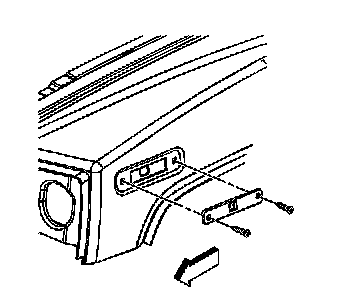

Removal Procedure

1. Open the hood.




2. Disconnect the electrical connector (5).
3. Remove the screws from the lamp housing.
4. Remove the lamp, with the attached harness (1), from the hood.

Installation Procedure

1. Install the lamp, with the attached harness, to the hood.






Notice: Refer to Fastener Notice.

2. Install the screws to the lamp housing.

Tighten the screws to 3 N.m (26 lb in).

3. Connect the electrical connector and secure the harness.
4. Close the hood.
