Map Light: Service and Repair

Overhead Console Reading Lamp and Bulb Replacement

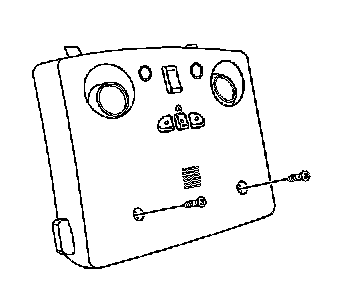

Removal Procedure

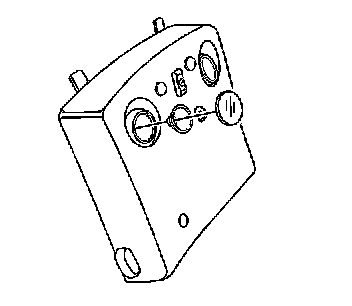

1. Use a flat bladed tool and pop the reading lamp lens from the forward console.
2. Turn the bulb 1/4 turn and remove the bulb from the reading lamp socket.




3. Remove the overhead console.

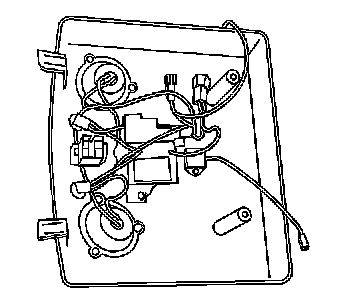

4. Disconnect the electrical connector from the reading lamp.

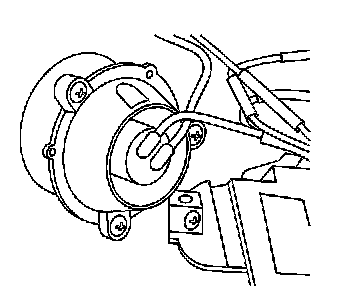

5. Remove the lamp socket assembly from the overhead console.

Installation Procedure





Notice: Refer to Fastener Notice.

1. Fasten the new lamp socket to the overhead console.

Tighten the screws to 2 N.m (18 lb in).




2. Connect the electrical connectors to the reading lamp.




3. Attach the overhead console to the headliner.

Tighten the screws to 2 N.m (18 lb in).




4. Install the new bulb assembly to the overhead console.
5. Snap the lens for the reading lamp into place in the overhead console.
