Map Light: Diagrams



Lighting Systems Connector End Views

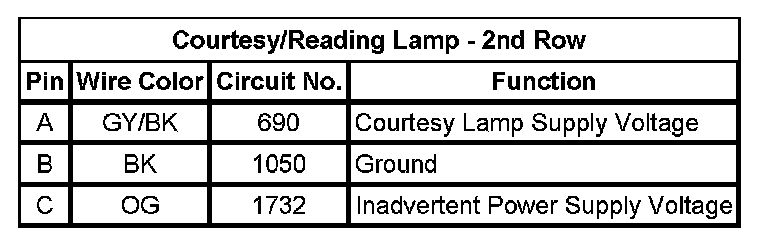

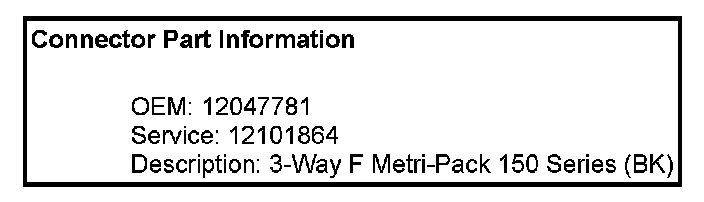

Courtesy/Reading Lamp - 2nd Row

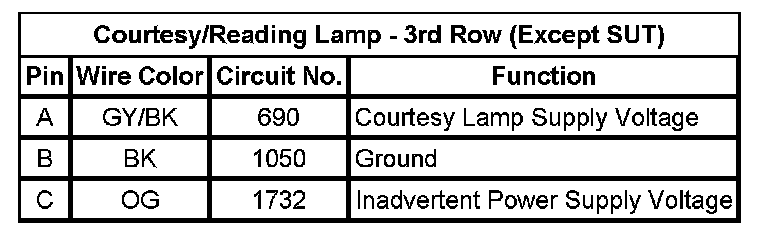

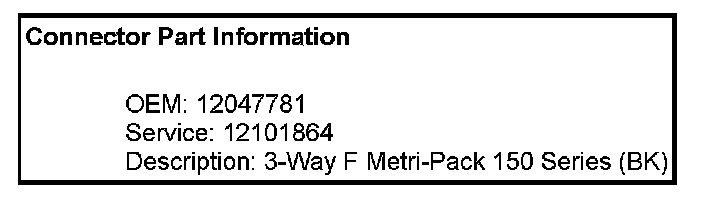

Courtesy/Reading Lamp - 3rd Row (Except SUT)














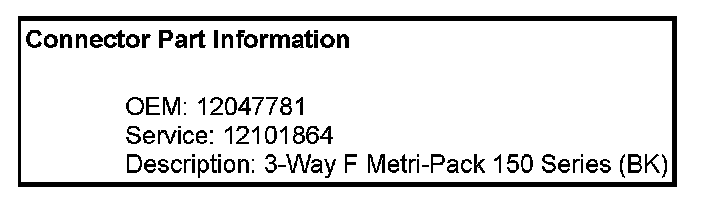

Courtesy/Reading Lamps - Left Front

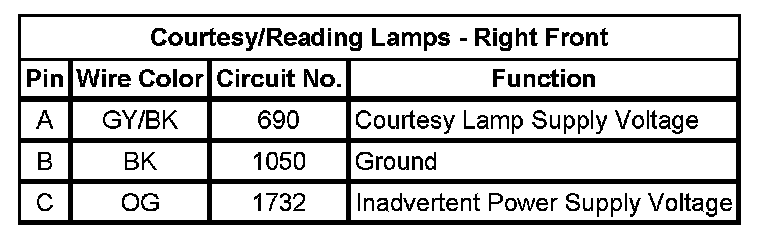

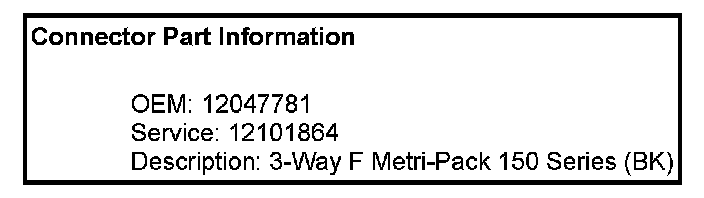

Courtesy/Reading Lamps - Right Front
