Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Mirrors Compass Display Inoperative or Inaccurate

Mirrors Compass Display Inoperative or Inaccurate



Mirrors Compass Display Inoperative or Inaccurate

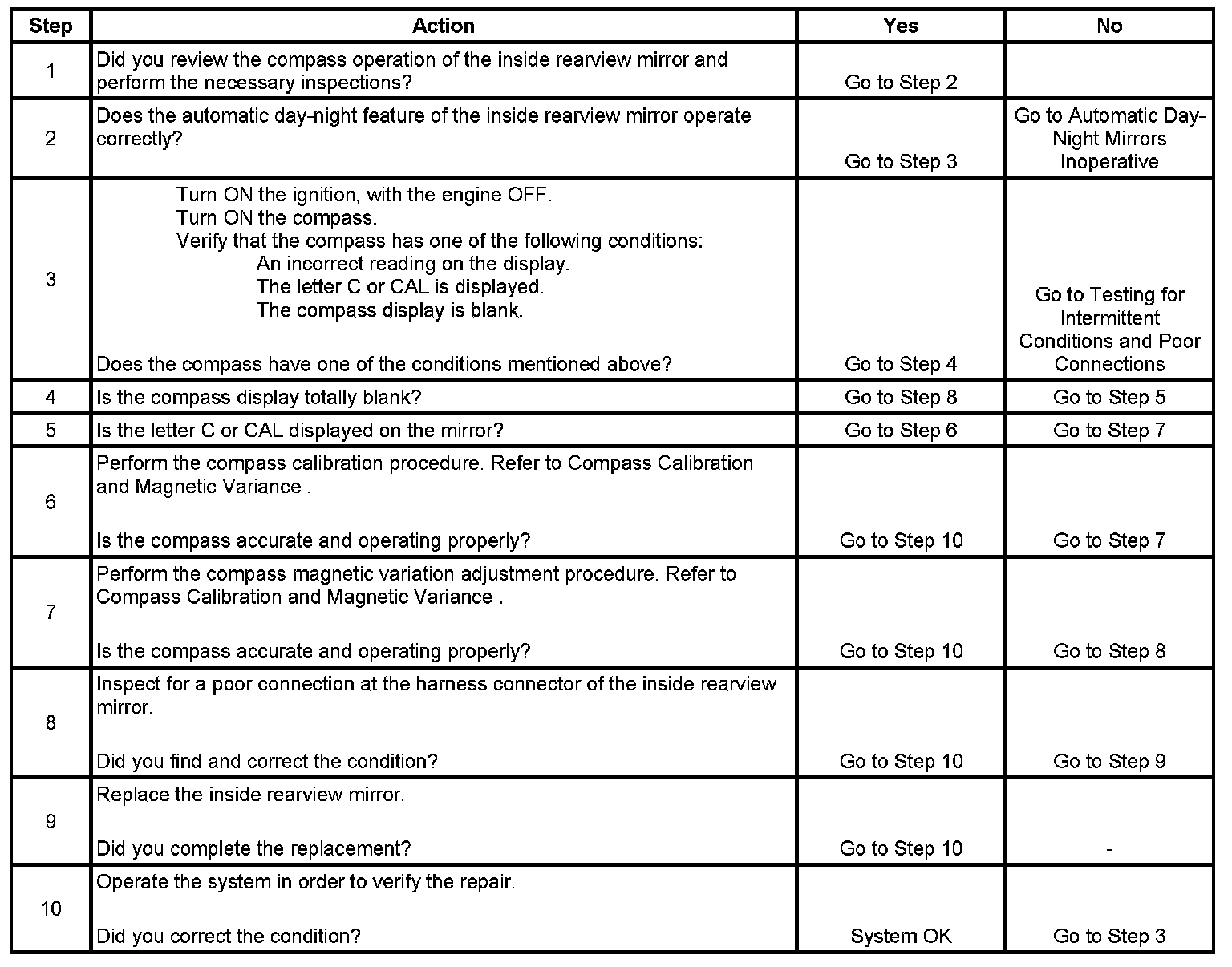

Step 1 - Step 10:
