HVAC Compressor Clutch Does Not Disengage

HVAC Compressor Clutch Does Not Disengage

Test Description

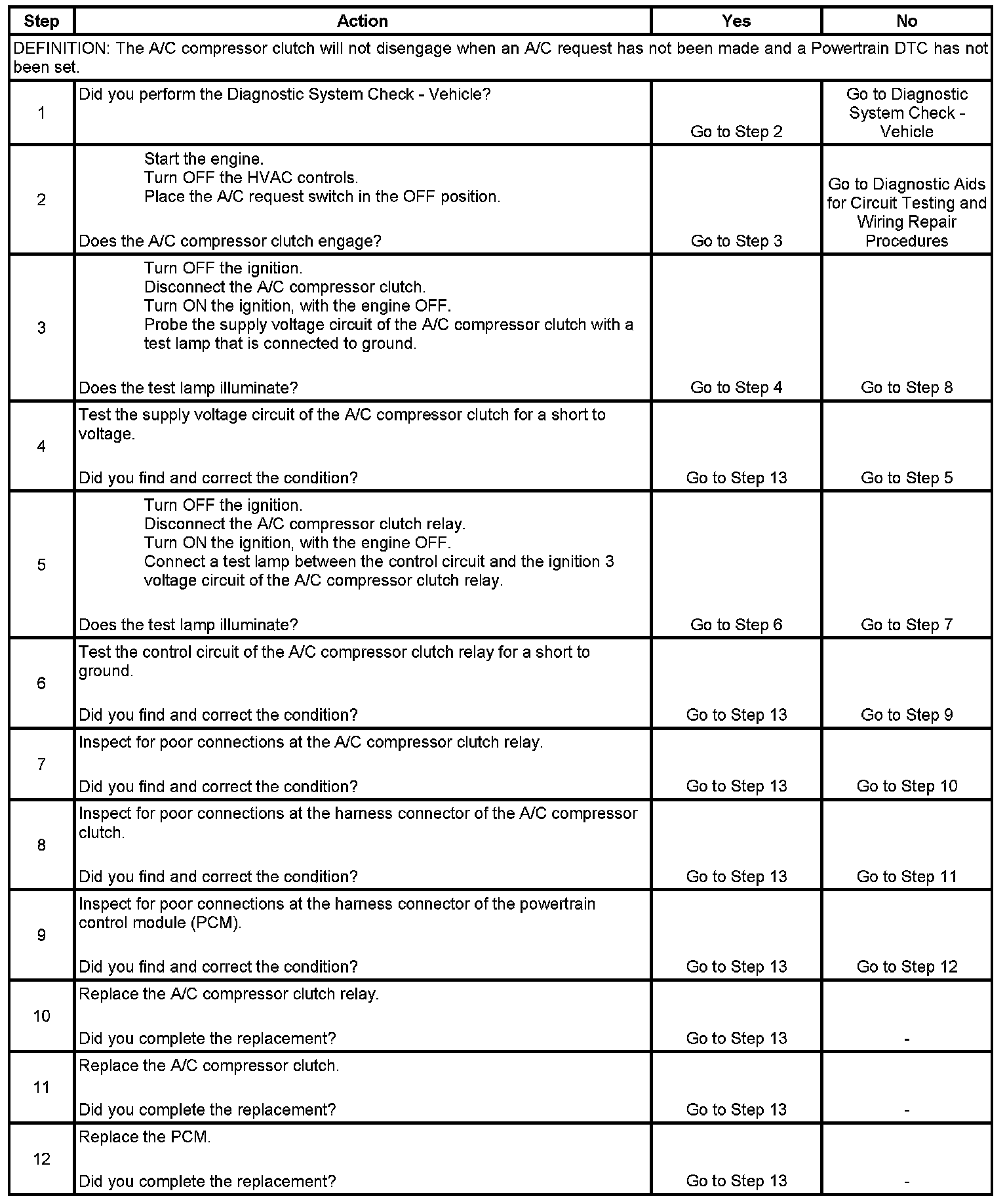

Step 1 - Step 12:

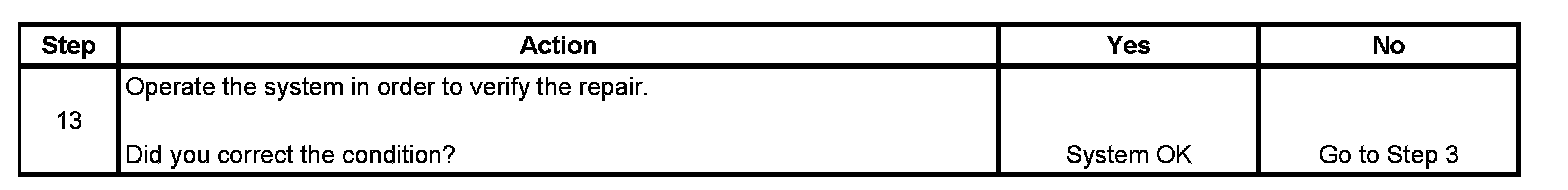

Step 13:

The number below refers to the step number on the diagnostic table.
2. These actions will disable the HVAC control module output to powertrain control module (PCM).
