Air Temperature Actuator Replacement - Left

Air Temperature Actuator Replacement - Left

Removal Procedure

1. Remove the I/P insulator panel.

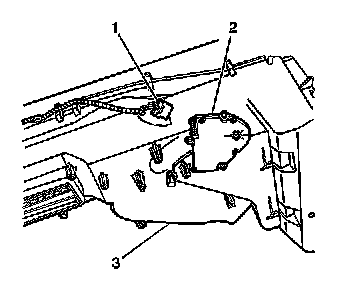

2. Disconnect the electrical connector (1) from the left air temperature actuator (2).
3. Remove the screws from the left air temperature actuator (2).
4. Remove the left air temperature actuator (2) from the HVAC module assembly (3).

Installation Procedure




1. Install the left air temperature actuator (2) to the HVAC module assembly (3).

Notice: Refer to Fastener Notice.

2. Install the screws to the left air temperature actuator (2).

Tighten the screws to 2 N.m (18 lb ft).

3. Install the electrical connector (1) to the left air temperature actuator (2).
4. Install the I/P insulator panel.
5. Reprogram the air temperature actuator. Refer to Re-Calibrating Actuators. Programming and Relearning
