83. Throttle Body Assembly Installation

Throttle Body Installation





Notice: Refer to Fastener Notice.

1. Install the throttle body studs, if required.

Tighten the throttle body studs to 6 N.m (53 lb in).

Important: DO NOT use the throttle body gasket again. Install a NEW gasket during assembly.

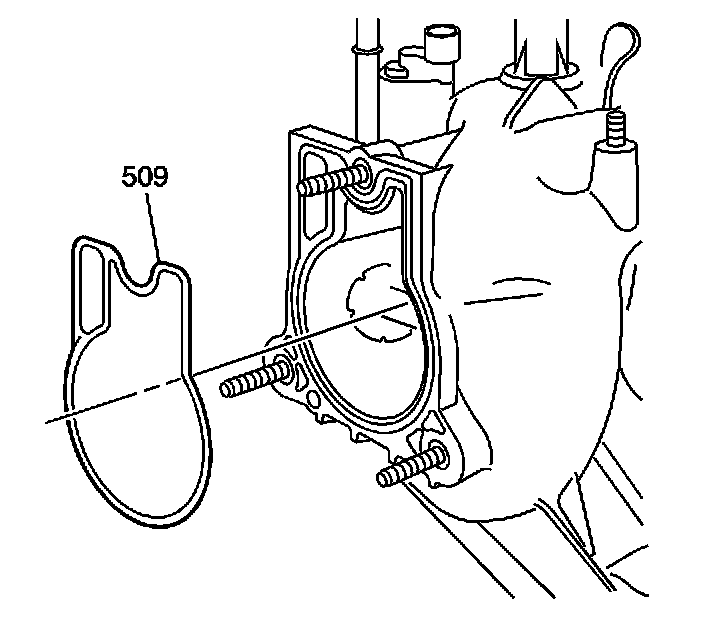

2. Install the throttle body gasket (509) to the intake manifold.

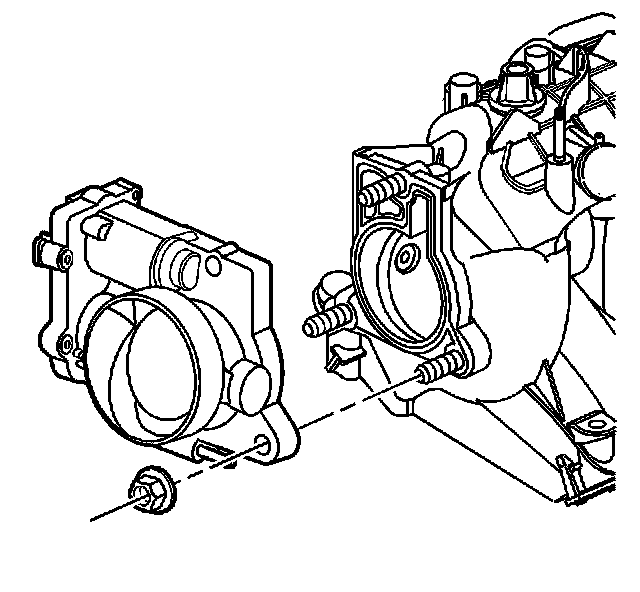

3. Install the throttle body and nuts.

Tighten the throttle body nuts to 10 N.m (89 lb in).

4. Install the engine coolant air bleed hose and clamp to the throttle body, if applicable.
