Engine Mount Replacement - Left

Engine Mount Replacement - Left Side

Removal Procedure

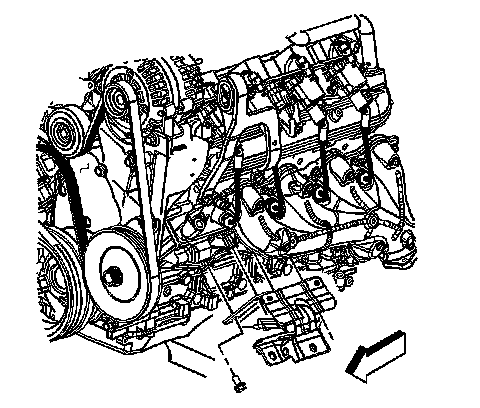

1. Remove the engine mount-to-frame bracket bolts. (Right side shown, left side similar).
2. Raise and suitably support the vehicle.




3. Remove the engine shield bolts.
4. Remove the engine shield.

Important: DO NOT raise and/or support the engine by the crankshaft balancer, or oil pan.

5. Raise and suitably support the engine using adjustable (screw type) jack stands.




6. Remove the engine mount bolts.
7. Remove the engine mount.

Installation Procedure




1. Position the engine mount to the engine.

Notice: Refer to Fastener Notice.

2. Install the engine mount bolts.

Tighten the engine mount bolts to 50 N.m (37 lb ft).

3. Lower the engine.
4. Remove the adjustable jack stands.




5. Position the engine shield to the vehicle.
6. Install the engine shield bolts.

Tighten the engine shield bolts to 30 N.m (22 lb ft).

7. Lower the vehicle.




8. Install the engine mount-to-frame bracket bolts (right side shown, left side similar).

Tighten the engine mount-to-frame bracket bolts to 65 N.m (48 lb ft).
