Engine Mount Bracket Replacement - Right

Engine Mount Bracket Replacement - Right Side

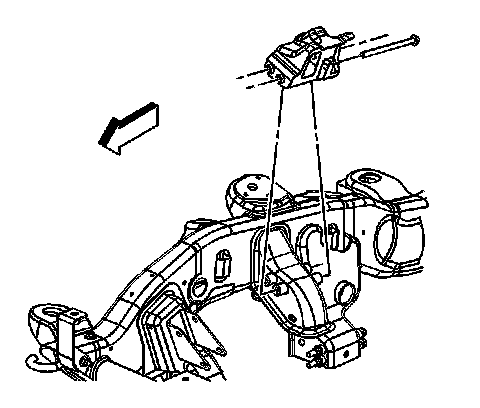

Removal Procedure




1. Remove the engine mount.
2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.

Installation Procedure




1. Install the engine mount bracket.
2. Perform the following procedure prior to installing the engine mount bracket bolts.
^ Remove all traces of the original adhesive patch.
^ Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
^ Apply threadlocker GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the bolts.

Notice: Refer to Fastener Notice.

3. Install the engine mount bracket bolts.

Tighten the engine mount bracket bolts to 75 N.m (55 lb ft).

4. Install the engine mount.
