Drive Belt Tensioner Replacement - Air Conditioning

Drive Belt Tensioner Replacement - Air Conditioning

Removal Procedure




1. Remove the air conditioning (A/C) drive belt.

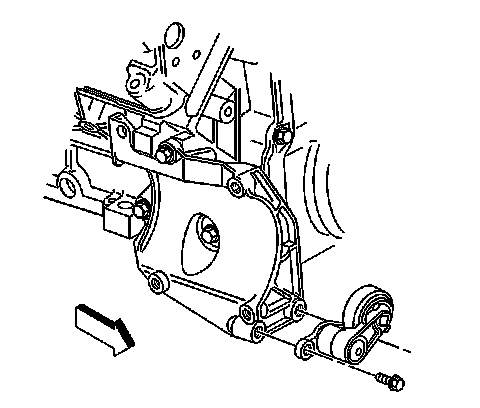

2. Remove the A/C belt tensioner bolts.
3. Remove the A/C belt tensioner.

Installation Procedure




1. Install the A/C belt tensioner.

Notice: Refer to Fastener Notice.

2. Install the A/C belt tensioner bolts.

Tighten the A/C belt tensioner bolts to 50 N.m (37 lb ft).

3. Install the A/C drive belt.
