Fan Replacement

Fan Replacement

Tools Required

J 46406 Fan Clutch Remover and Installer

Removal Procedure




1. Remove the fan shroud.

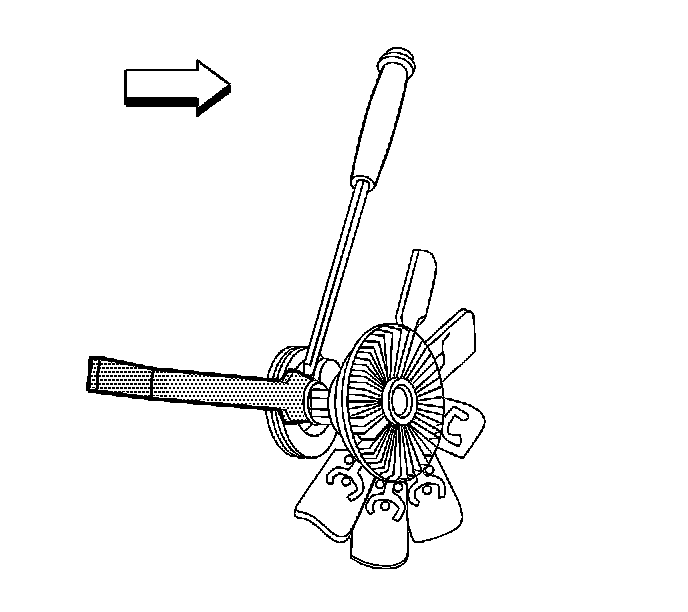

2. Install J 46406 to the fan clutch.




3. Remove the fan hub nut from the water pump.

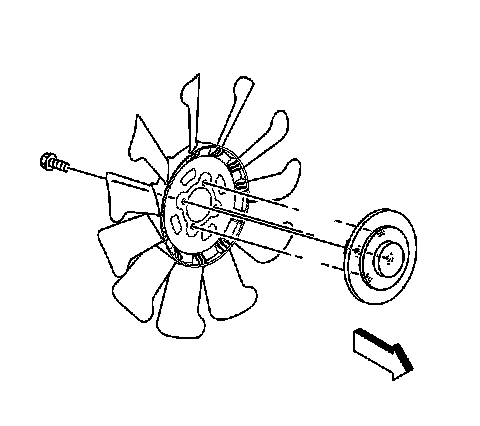

4. Remove the bolts from the fan clutch.
5. Separate the fan clutch from the fan blade.

Installation Procedure

Caution: Do not use or attempt to repair a damaged cooling fan assembly. Replace damaged fans with new assemblies. An unbalanced cooling fan could fly apart causing personal injury and property damage.




1. Install the fan clutch to the fan blade.

Notice: Refer to Fastener Notice.

2. Install the bolts to the fan clutch.

Tighten the bolts to 23 N.m (17 lb ft).

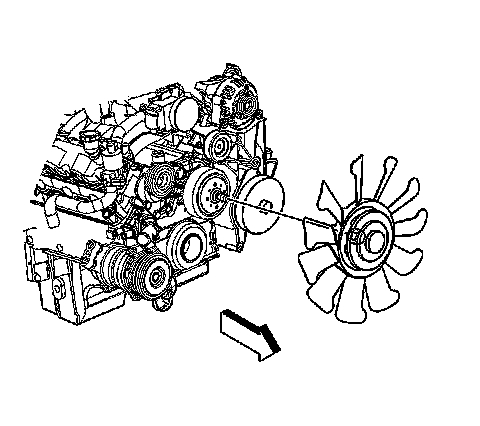

3. Install the fan blade to the vehicle.




4. Install J 46406 to the fan clutch.

Tighten the nut to 59 N.m (44 lb ft).

5. Install the fan shroud.
