I/P Harness Routing 1 of 2

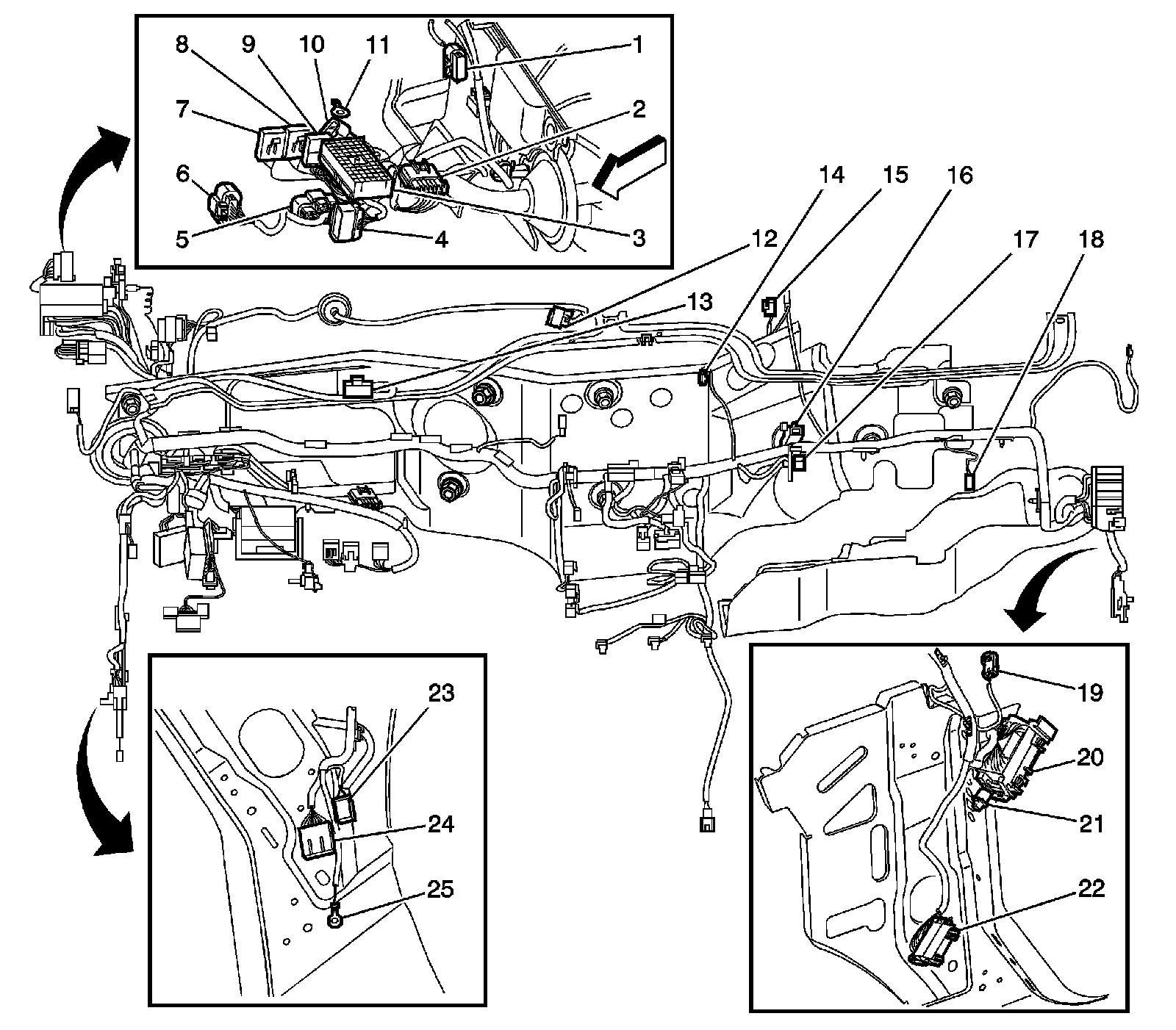

Harness Routing Views

I/P Harness Routing 1 of 2




1 - Throttle Actuator Control (TAC) Module Connector - C2
2 - C102 I/P to Chassis Harness
3 - Fuse Block - Underhood C1
4 - C101 I/P to Chassis Harness
5 - C100 I/P to Engine Harness
6 - C103 I/P to Forward Lamp Harness
7 - Fuse Block - Underhood C6
8 - Fuse Block - Underhood C5
9 - Fuse Block - Underhood C7
10 - C104 I/P to Chassis Harness
11 - Trailer Harness Feed
12 - Windshield Wiper Motor and Module Connector
13 - Instrument Panel Cluster (IPC) Connector
14 - Air Temperature Sensor - Upper Right Connector
15 - Ambient Light/Sunload Sensor Assembly Connector
16 - Inflatable Restraint I/P Module Connector
17 - Inflatable Restraint I/P Module Disable Switch Connector
18 - I/P Compartment Lamp Connector
19 - Speaker - RF Tweeter Connector
20 - Junction Block - I/P
21 - Courtesy Lamp - Right Footwell Connector
22 - C298 I/P to Body Harness
23 - C201 I/P to Body Harness
24 - C200 I/P to Body Harness
25 - G200
