Suspension Control ( Automatic - Electronic )

Air Suspension Schematics

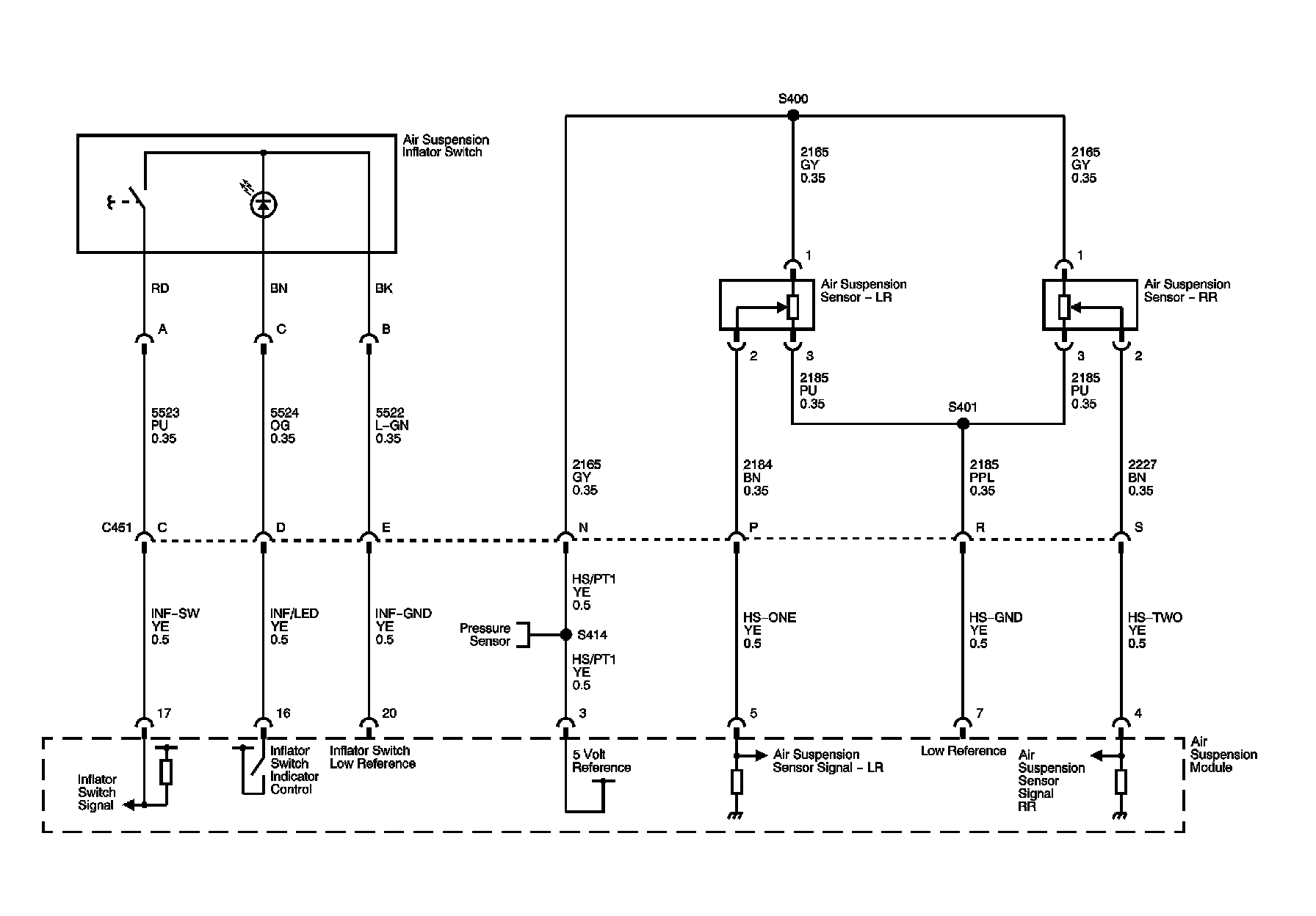

Air Suspension Schematics 1:

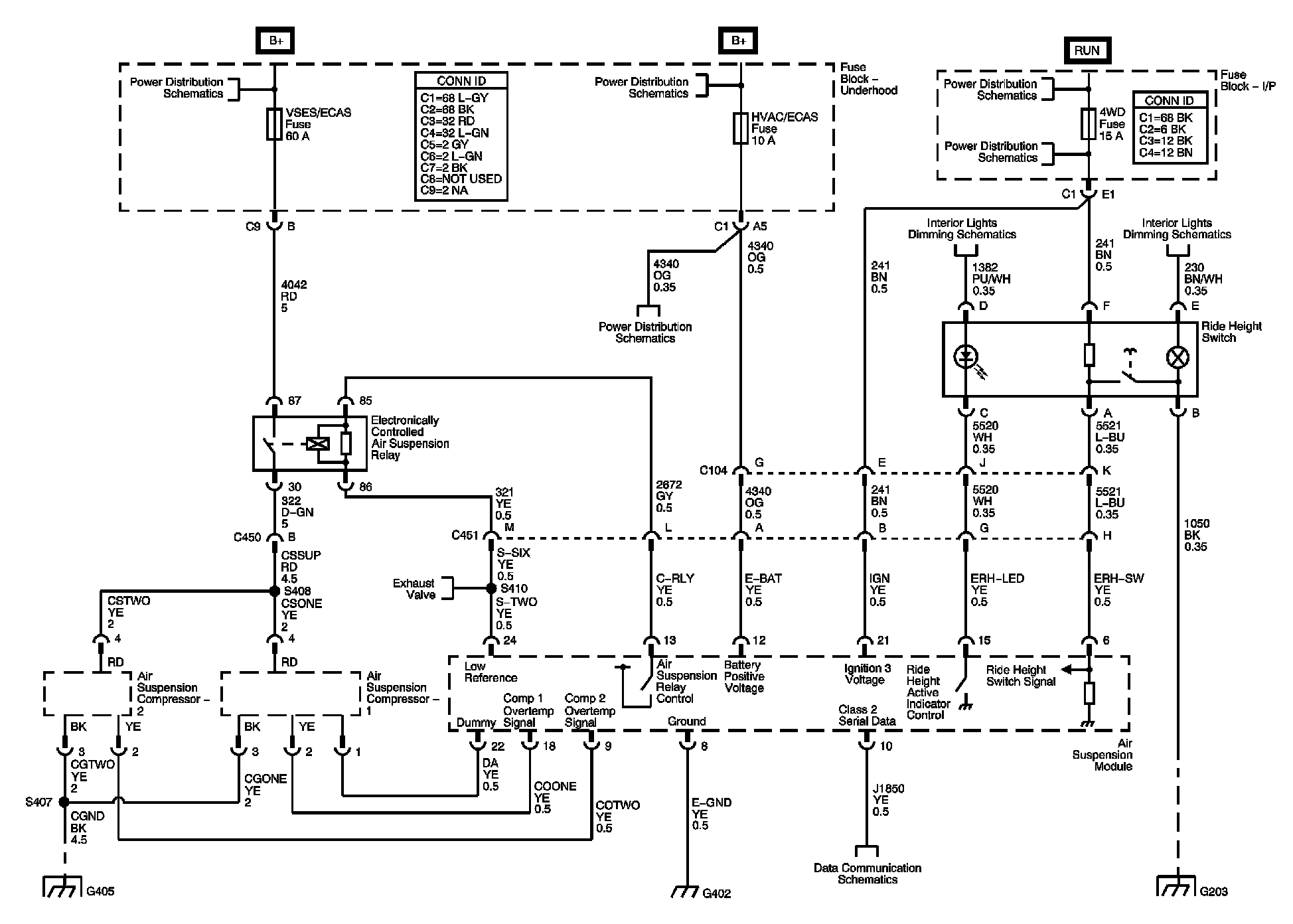

Air Suspension Schematics 2:

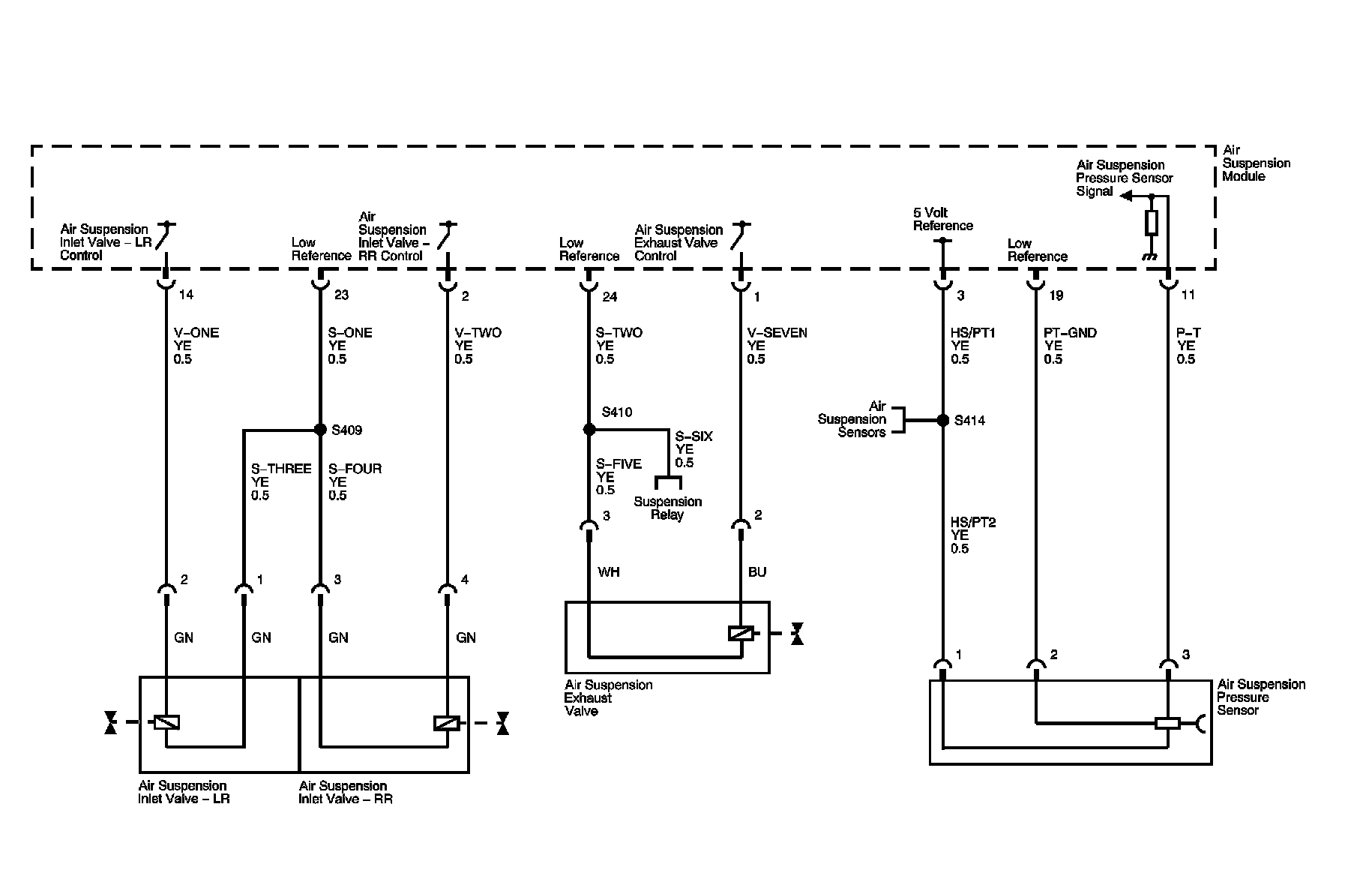

Air Suspension Schematics 3:

Locations: The location for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
