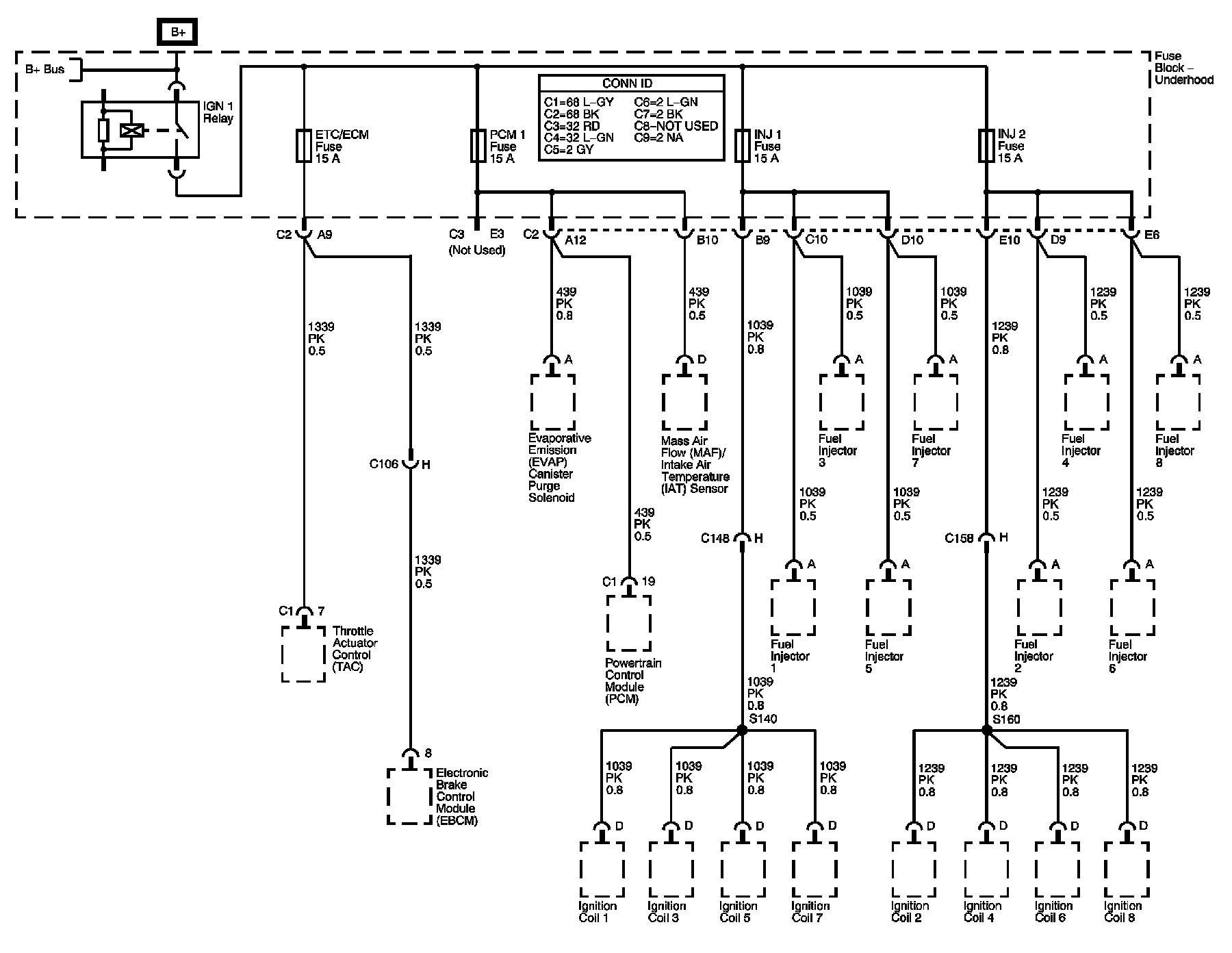

Power Distribution Diagram 18



Power Distribution Schematics

ETC/ECM, INJ1, INJ2, and PCM 1 Fuses

Power Distribution Diagram 18:






Previous Diagram: Power Distribution Diagram 17

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
