Power Distribution Diagram 16

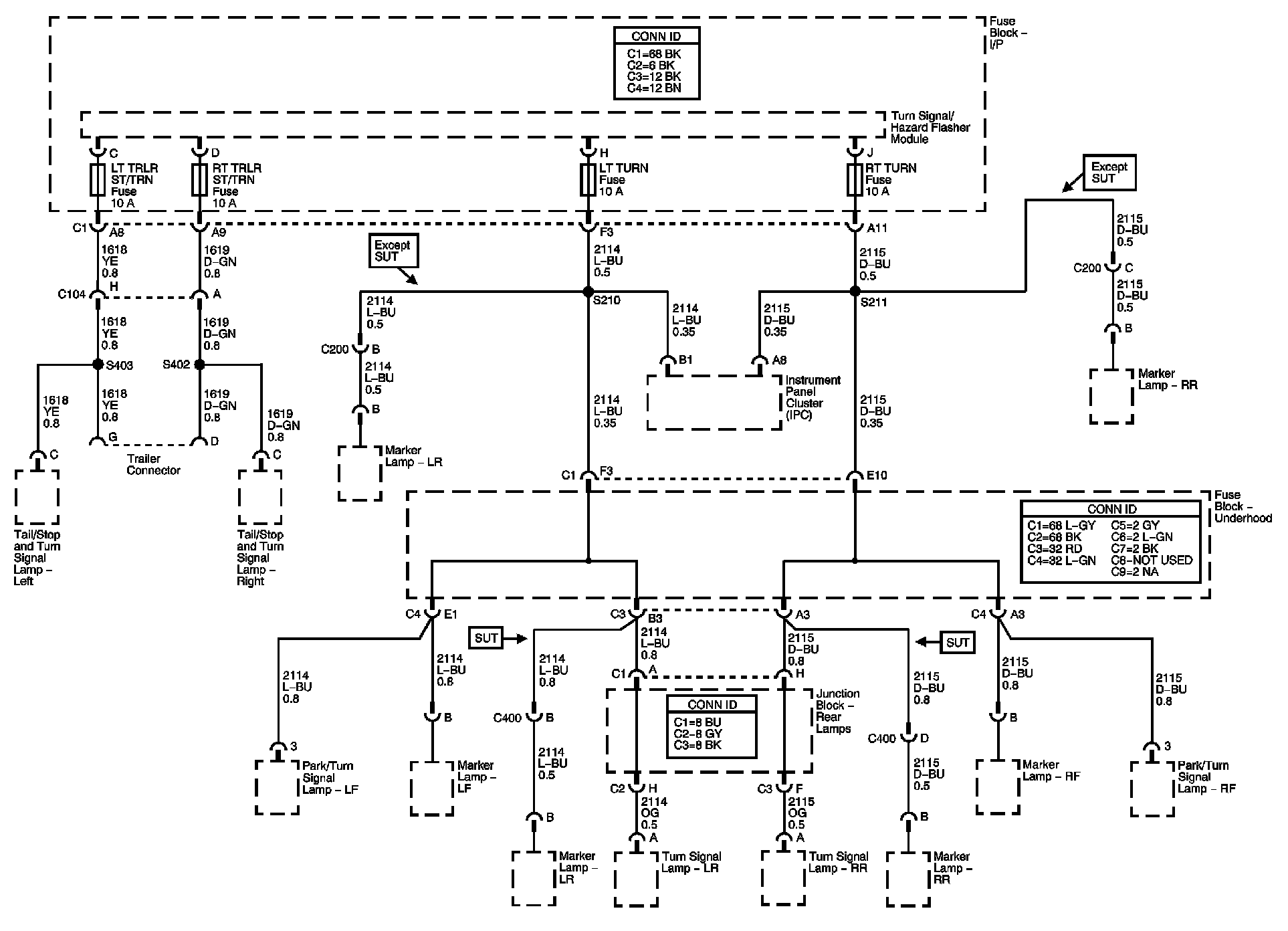

Power Distribution Schematics

FLASH, LT TRLR, LT TURN, RT TRLR, and RT TURN Fuses

Power Distribution Diagram 16:

Next Diagram: Power Distribution Diagram 17

Previous Diagram: Power Distribution Diagram 15

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
