Power Distribution Diagram 15

Power Distribution Schematics

4WD, BRAKE, CRUISE, HVAC 1, and IGN 3 Fuses

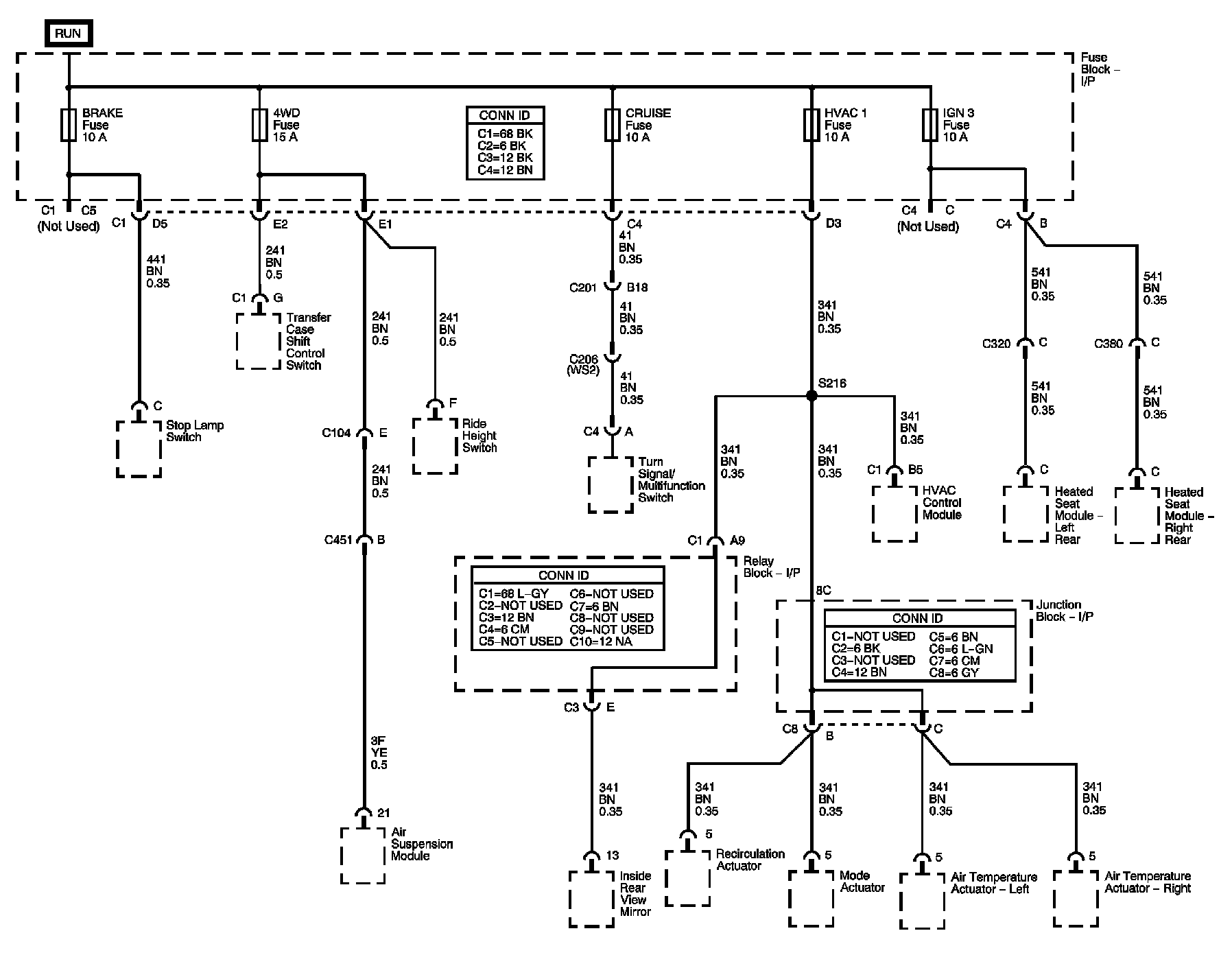

Power Distribution Diagram 15:

Next Diagram: Power Distribution Diagram 16

Previous Diagram: Power Distribution Diagram 14

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
