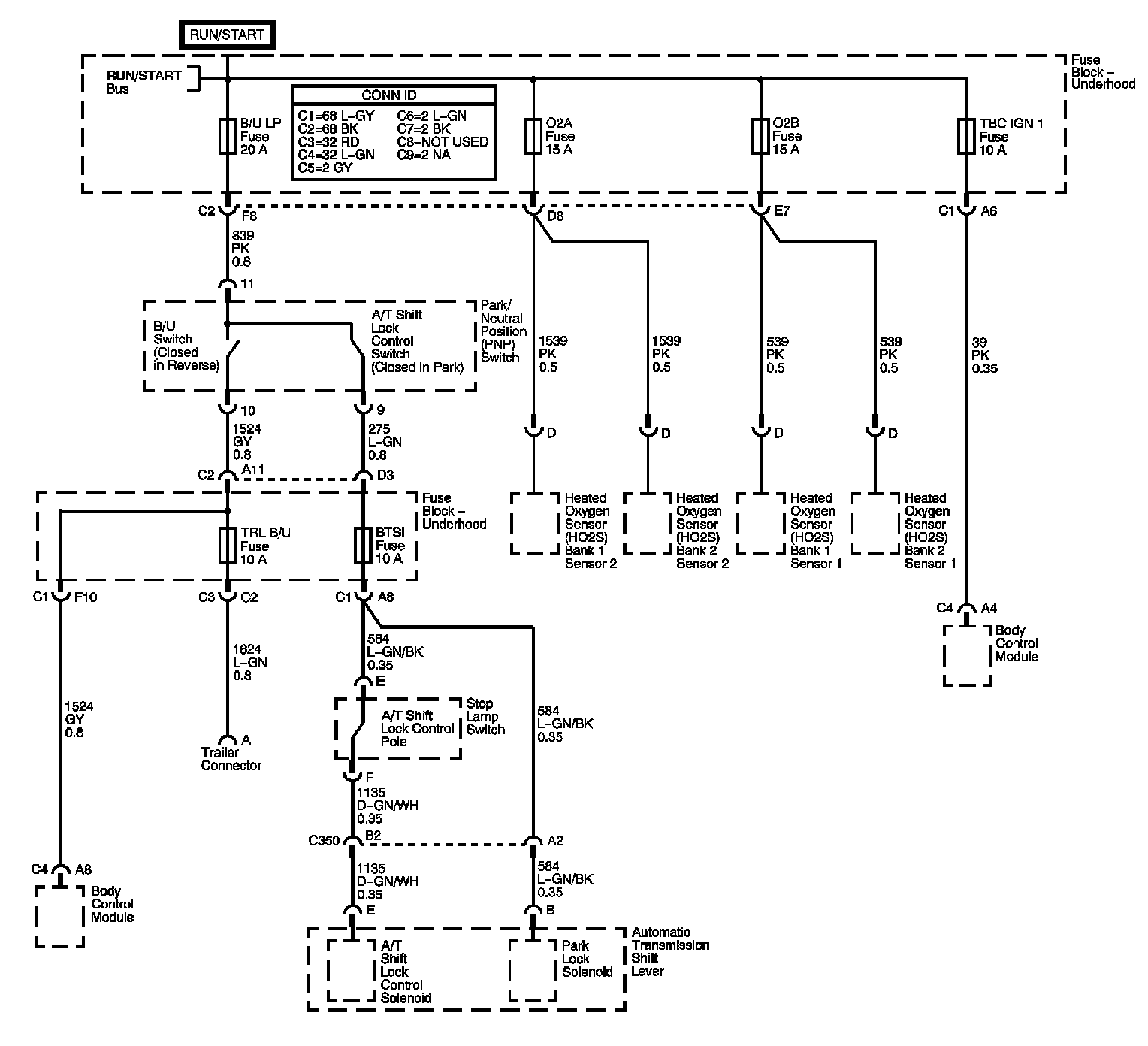

Power Distribution Diagram 12

Power Distribution Schematics

B/U LP, BTSI, 02A, 02B, TBC IGN1, and TRL B/U Fuses

Power Distribution Diagram 12:

Next Diagram: Power Distribution Diagram 13

Previous Diagram: Power Distribution Diagram 11

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
