Engine Controls Diagram 8

Engine Controls Schematics

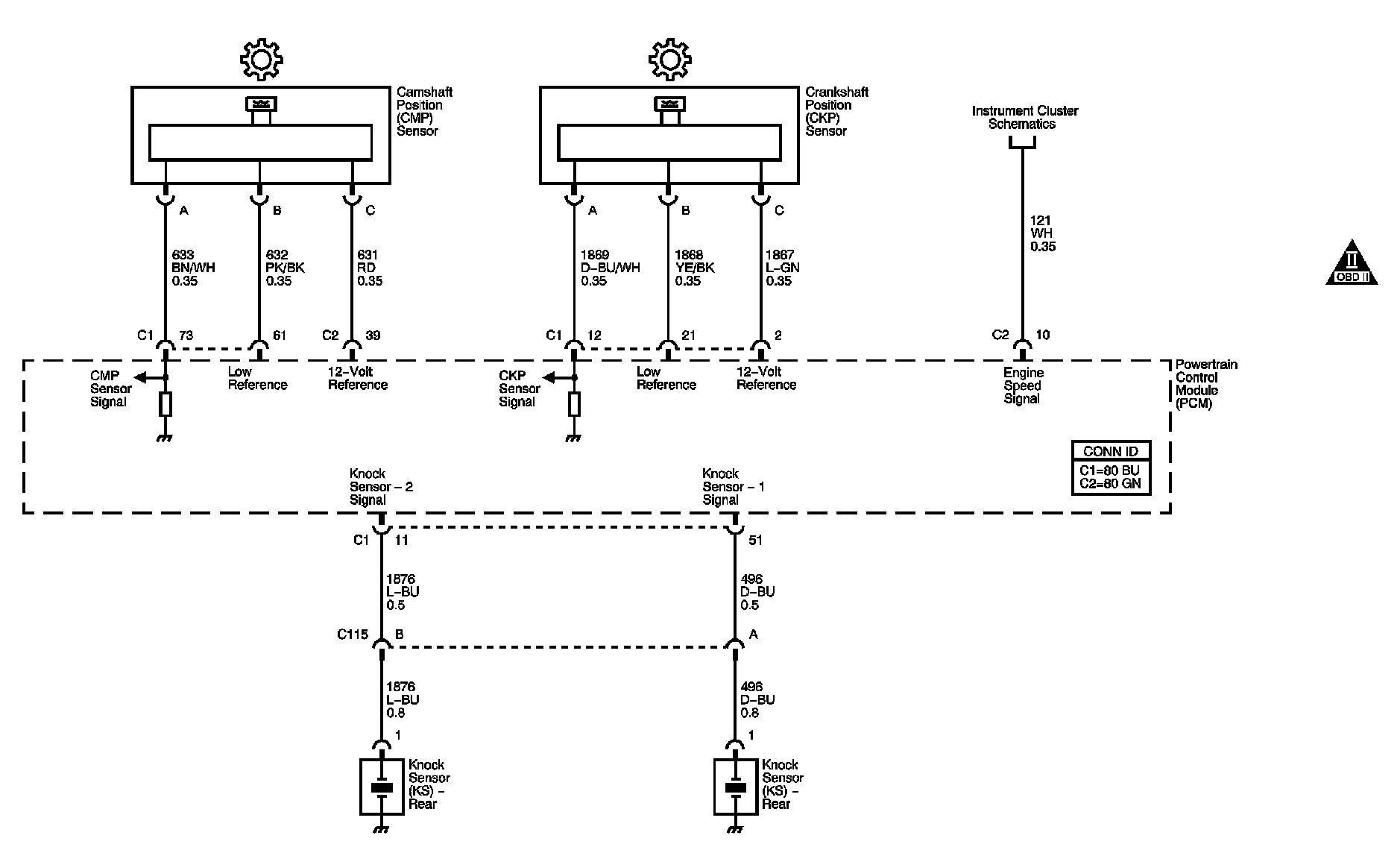

Ignition Controls - Sensors

Engine Controls Diagram 8:

Next Diagram: Engine Controls Diagram 9

Previous Diagram: Engine Controls Diagram 7

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
