Information Bus

Data Communication Schematics

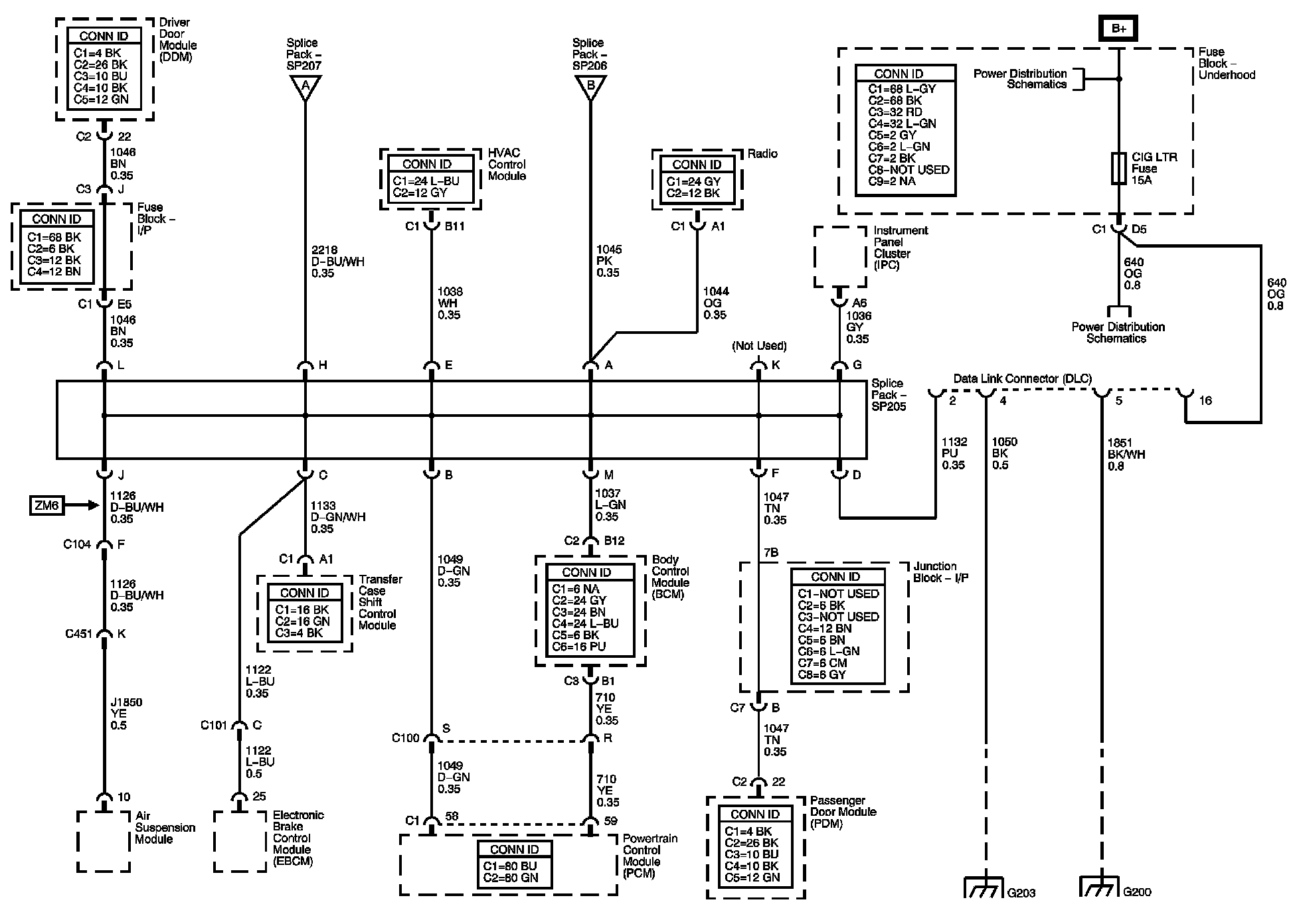

Power, Ground, Data Link Connector, and SP205

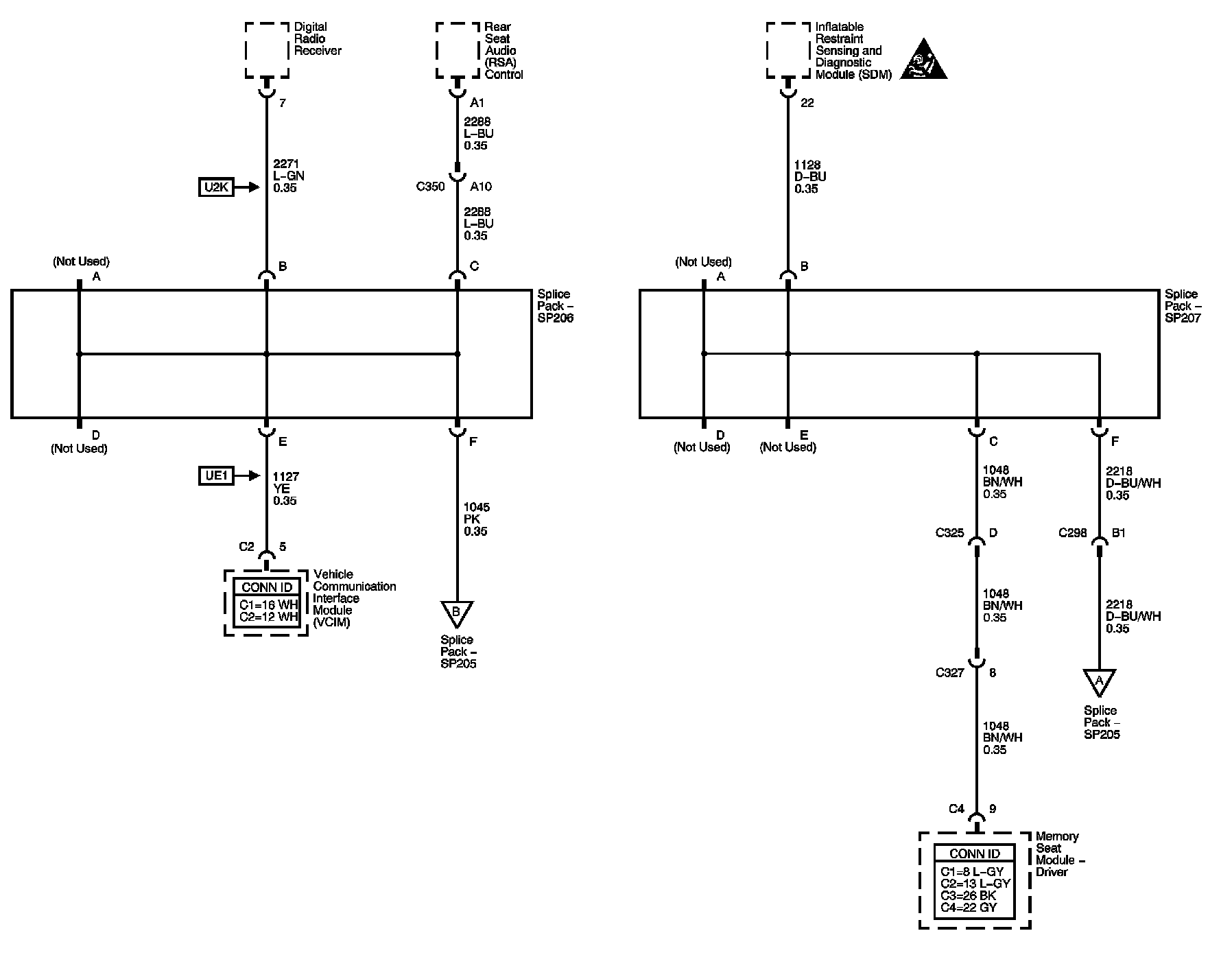

SP206 and SP207






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
