Wiring Diagram Index

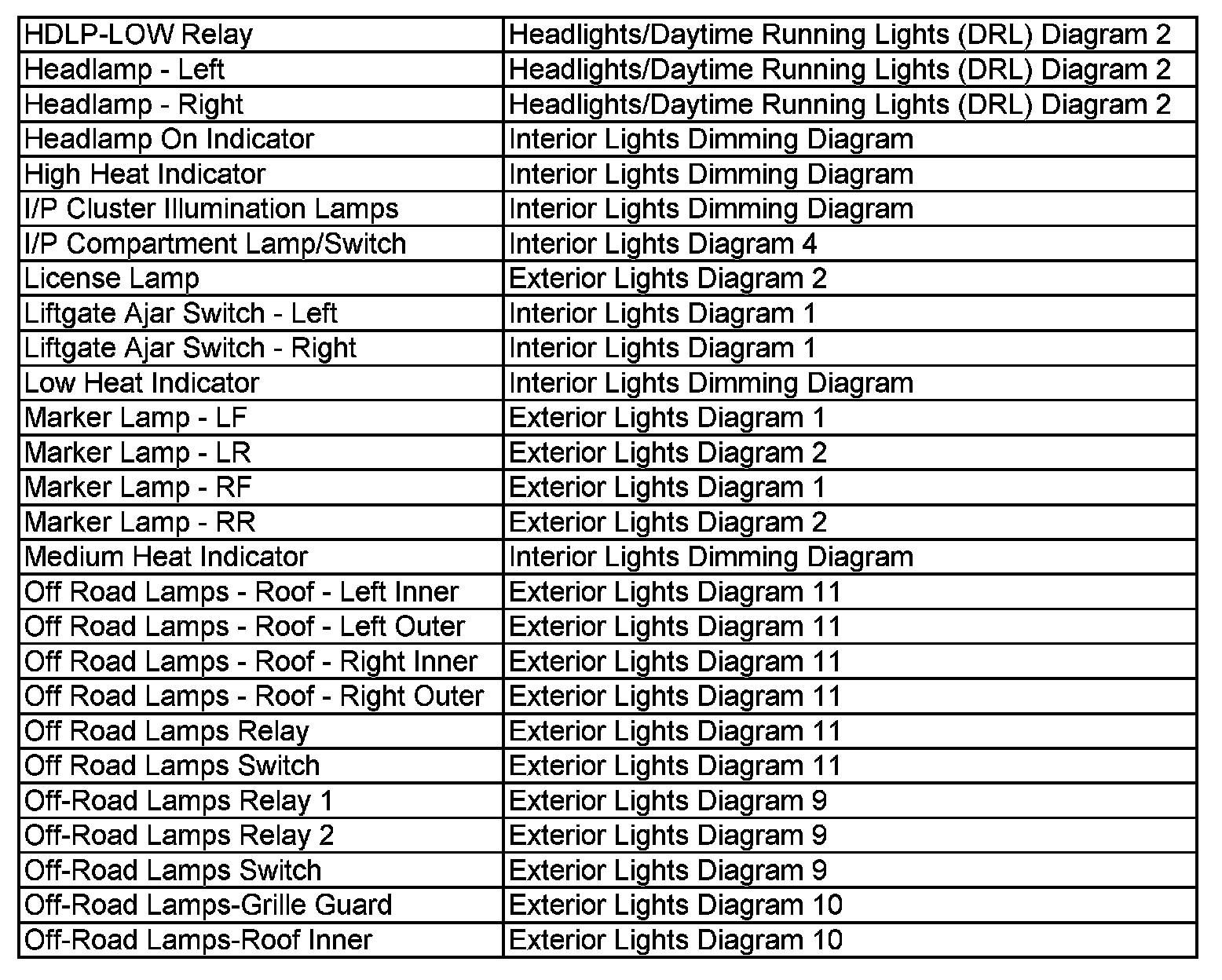

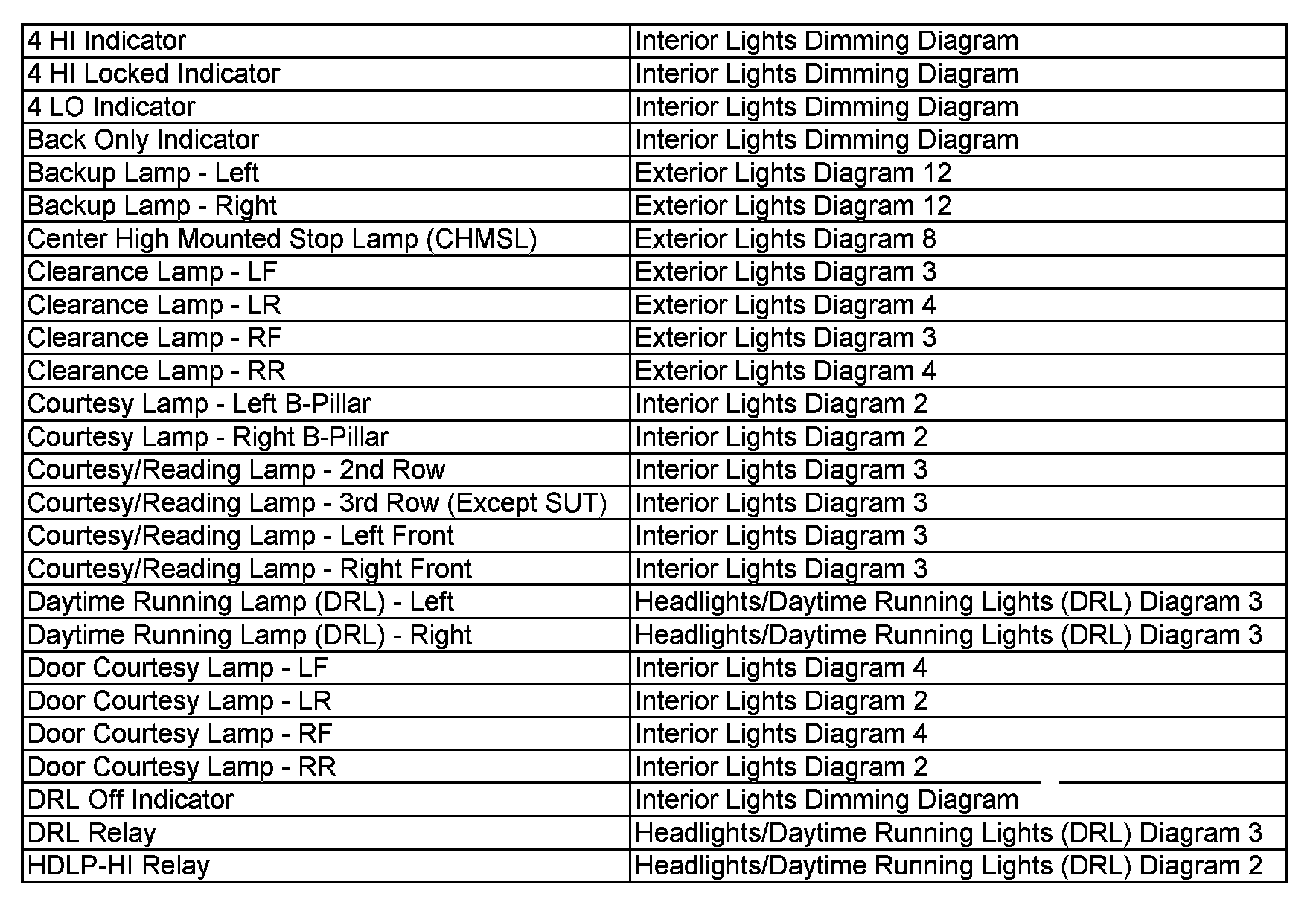

4 HI - HDLP-HI:



HDLP-LOW - Off-Road Lamps-Roof Inner:

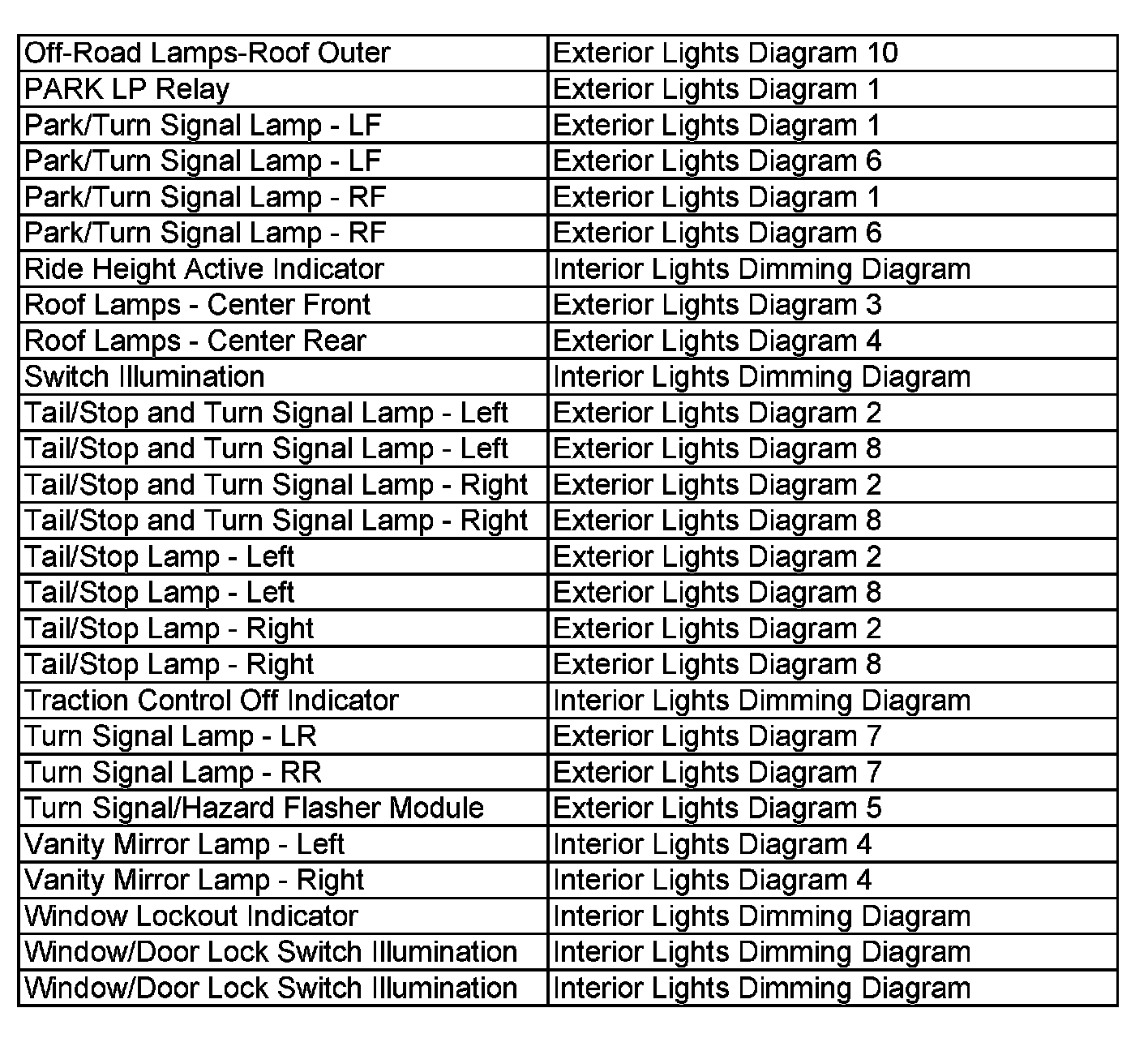

Off-Road Lamps-Roof Outer - Window/Door Lock:
