Interior Lights Diagram 4

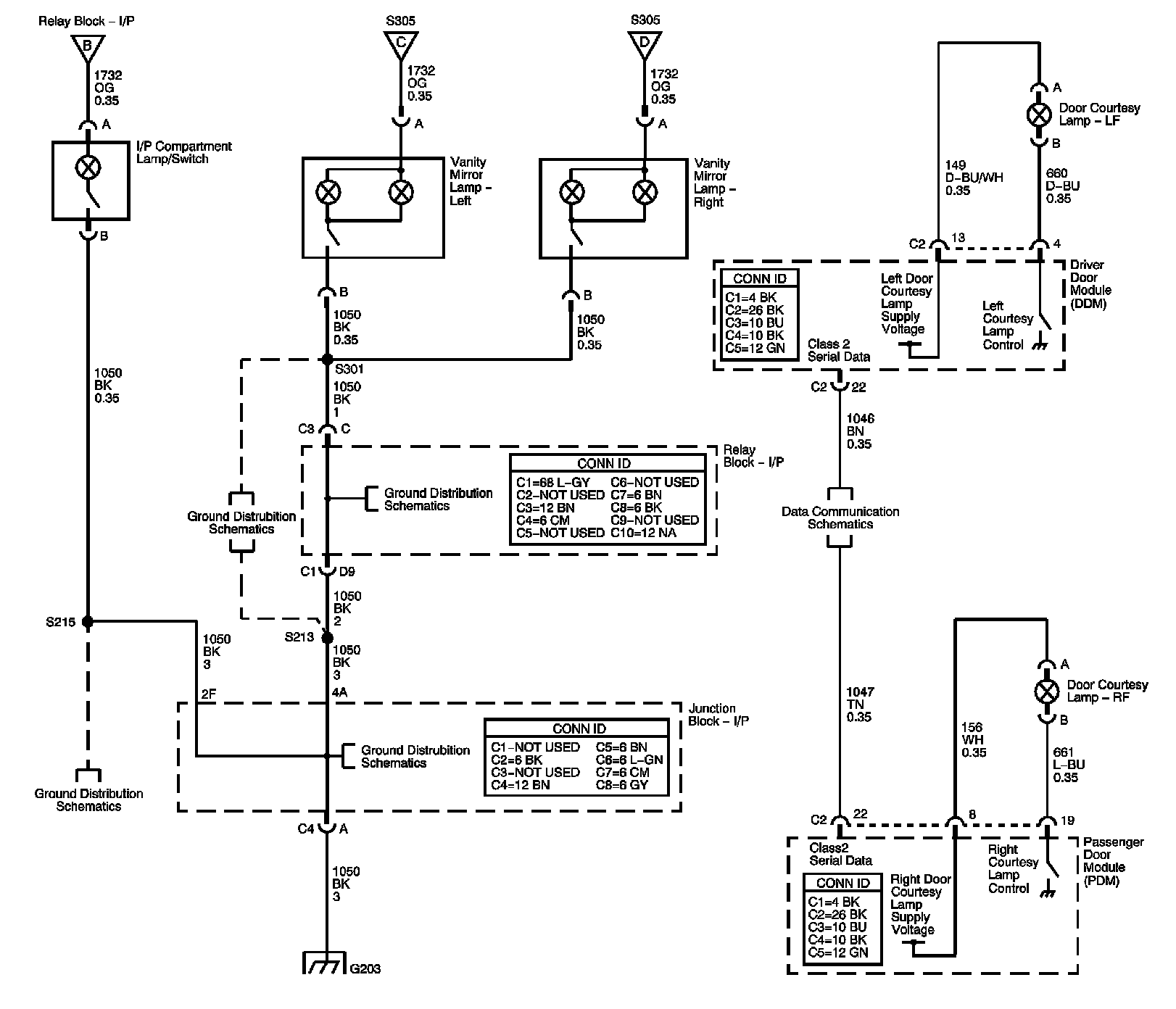

Interior Lights Schematics

Courtesy Lamps - Front Doors, Vanity Mirrors, and I/P Compartment Lamp

Interior Lights Diagram 4:






Previous Diagram: Interior Lights Diagram 3

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
