Exterior Lights Diagram 10

Exterior Lights Schematics

Off-Road Lights (USB, USC)

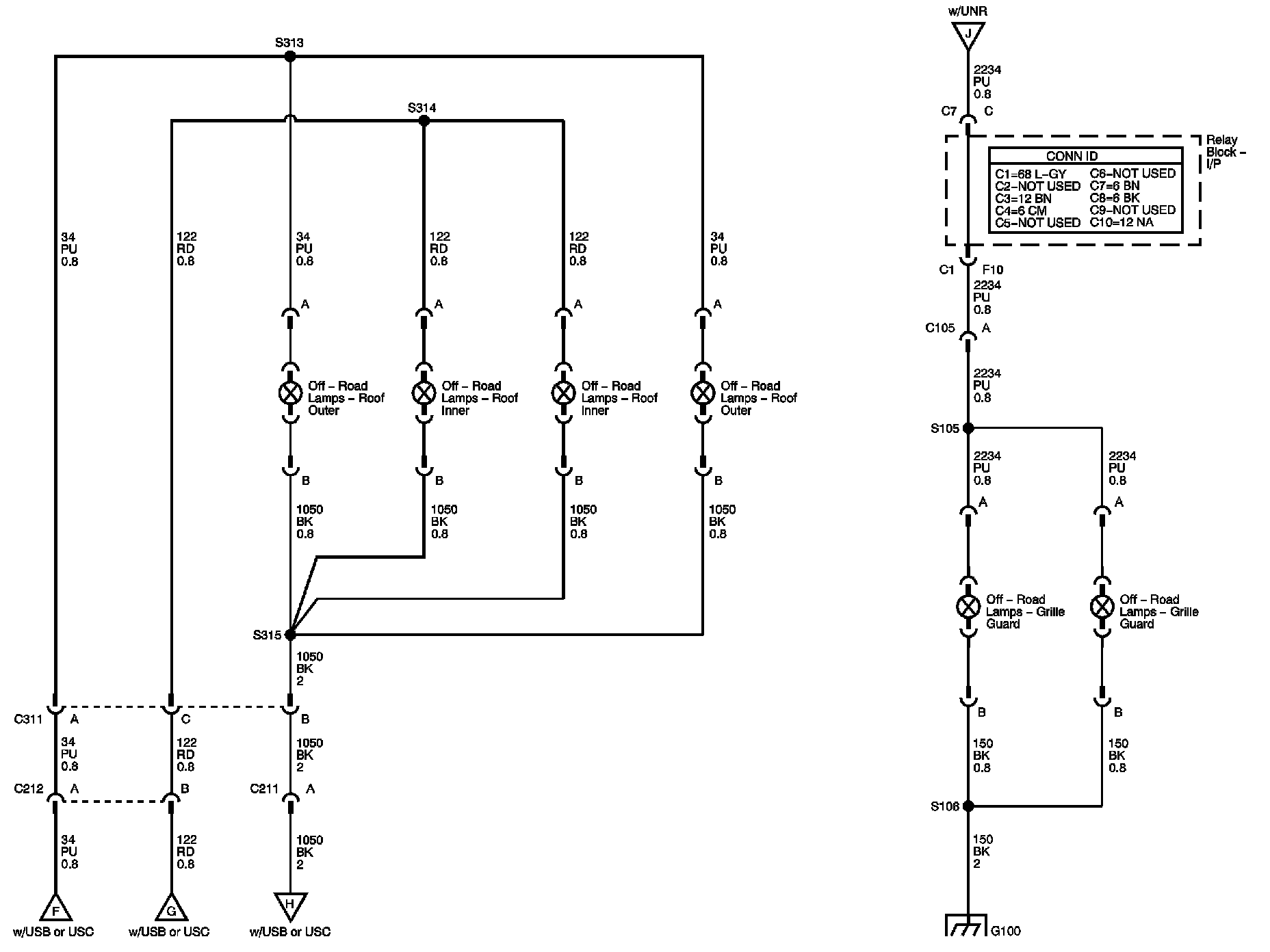

Exterior Lights Diagram 10:

Next Diagram: Exterior Lights Diagram 11

Previous Diagram: Exterior Lights Diagram 9

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
