C420

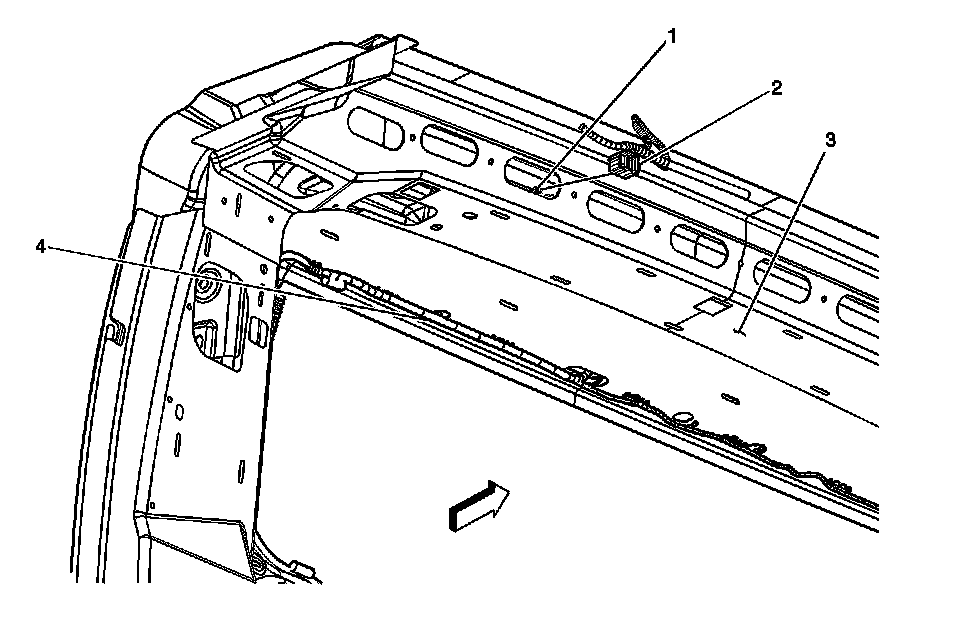

Harness Routing Views

C420




1 - C420-Liftgate Harness Side
2 - C420-Body Harness Side
3 - Liftgate
4 - Liftgate Harness
