C350

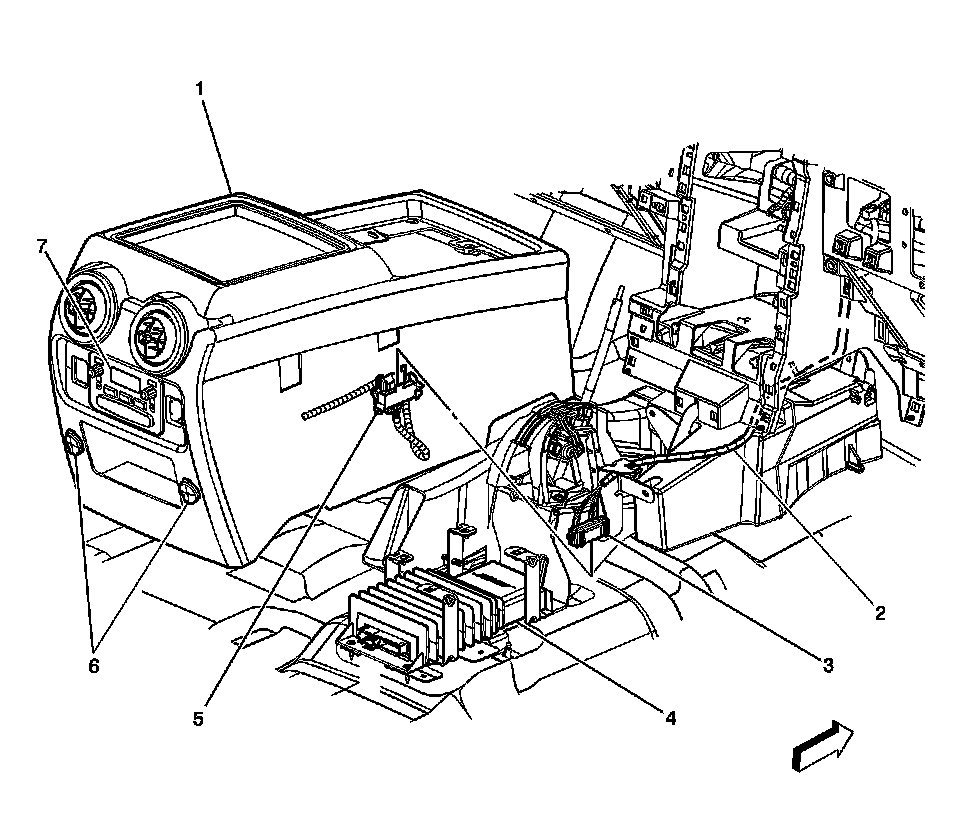

Harness Routing Views

C350




1 - Front Floor Console
2 - I/P Harness
3 - C350-I/P Harness Side
4 - Audio Amplifier
5 - C350-Console Harness Side
6 - Accessory Power Outlets-Rear
7 - Rear Seat Audio (RSA)
