C310

Vehicle Access Component Views

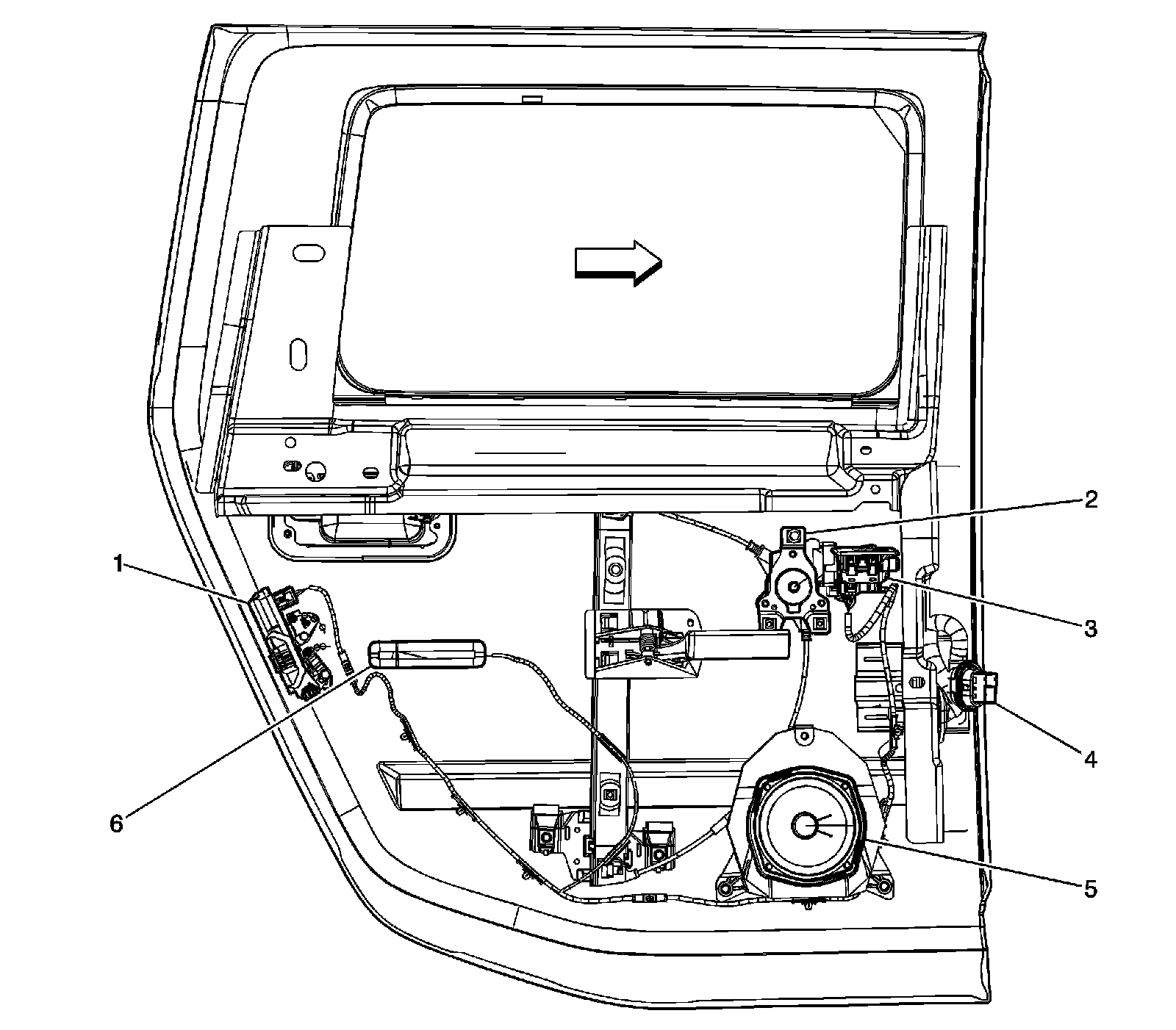

Left Rear Door




1 - Door Latch Assembly - LR
2 - Window Motor - LR
3 - Window Switch - LR
4 - C310
5 - Speaker - LR
6 - Door Courtesy Lamp - LR



Harness Routing Views

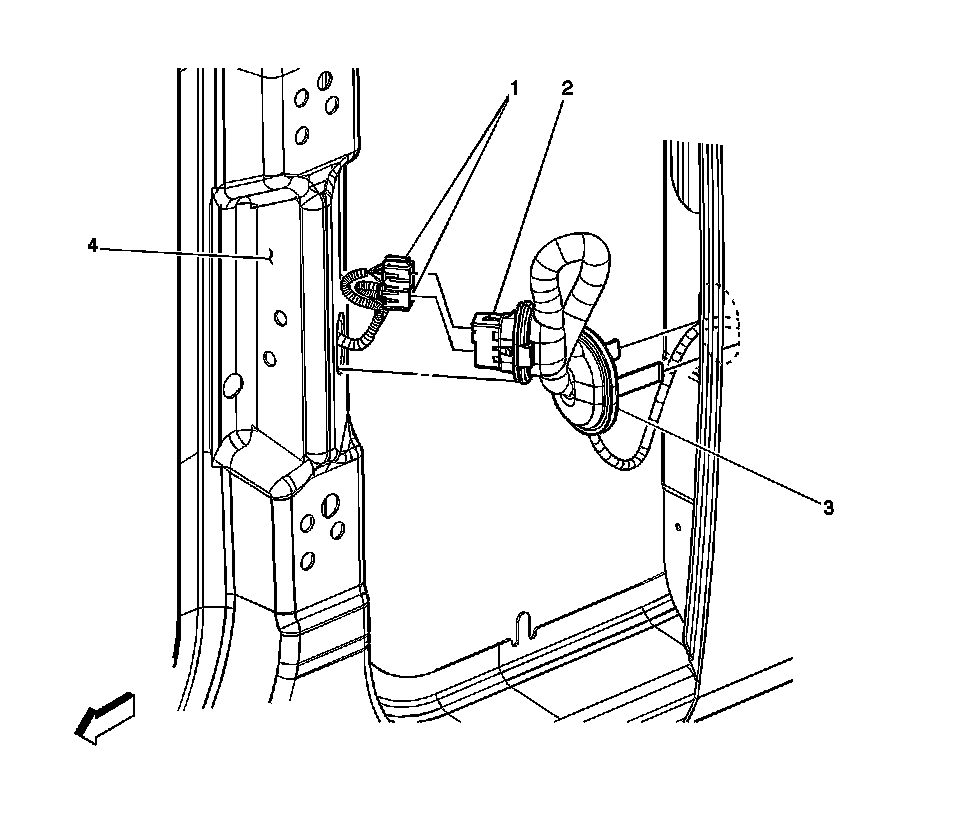

C310-LR Shown-RR Similar




1 - C310-Body Harness Side
2 - C310-LR Door Harness Side
3 - Passthrough Grommet
4 - B Pillar
