C300

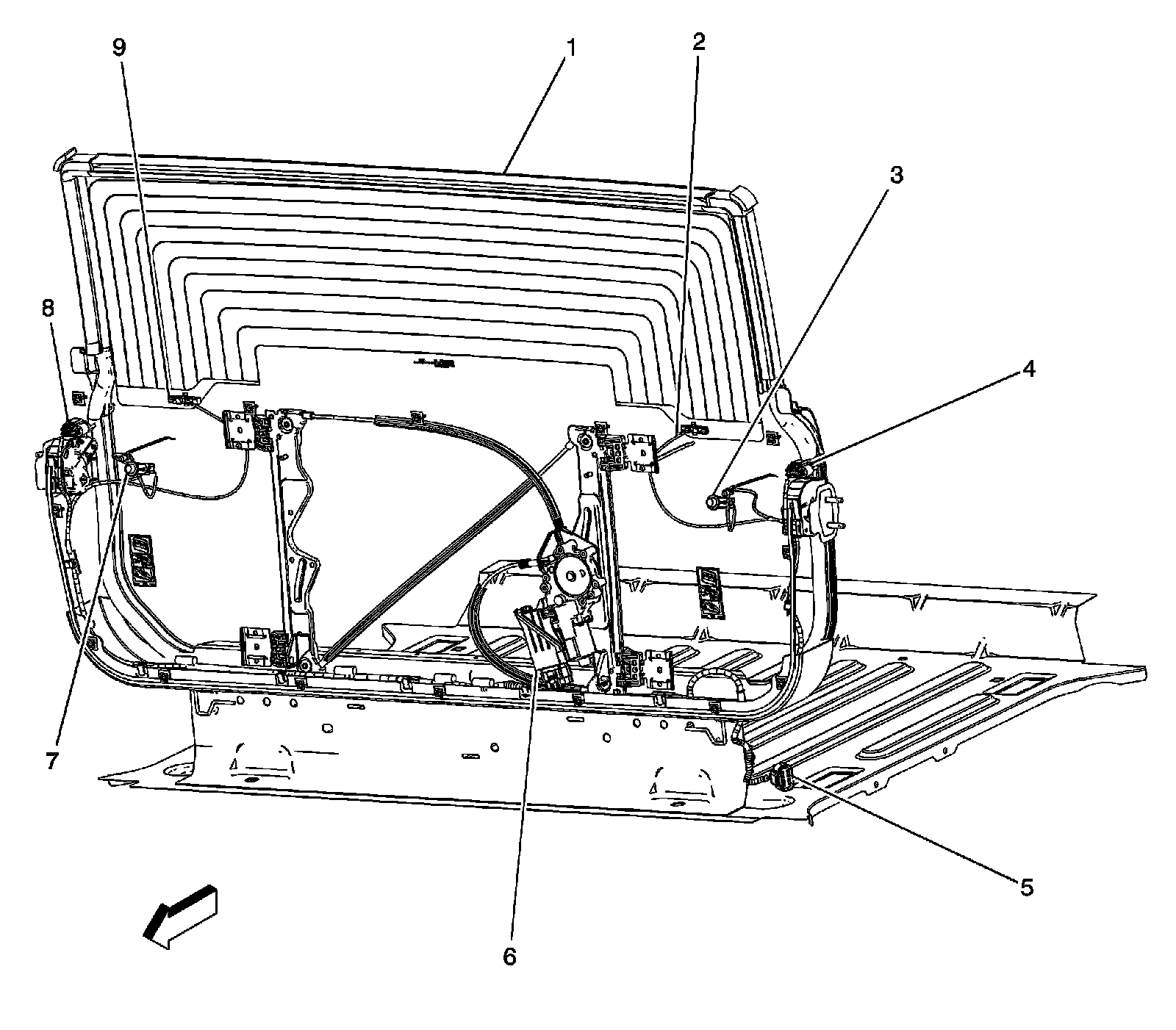

Window Systems Component Views

Midgate (SUT)




1 - Midgate Window
2 - Defogger Grid Connector - Left
3 - Midgate Latch Release Switch - Left
4 - Midgate Latch - Left
5 - C300
6 - Midgate Control Module
7 - Midgate Latch Release Switch - Right
8 - Midgate Latch - Right
9 - Defogger Grid Connector - Right
