Power and Grounding Component Views
Power and Grounding Component Views

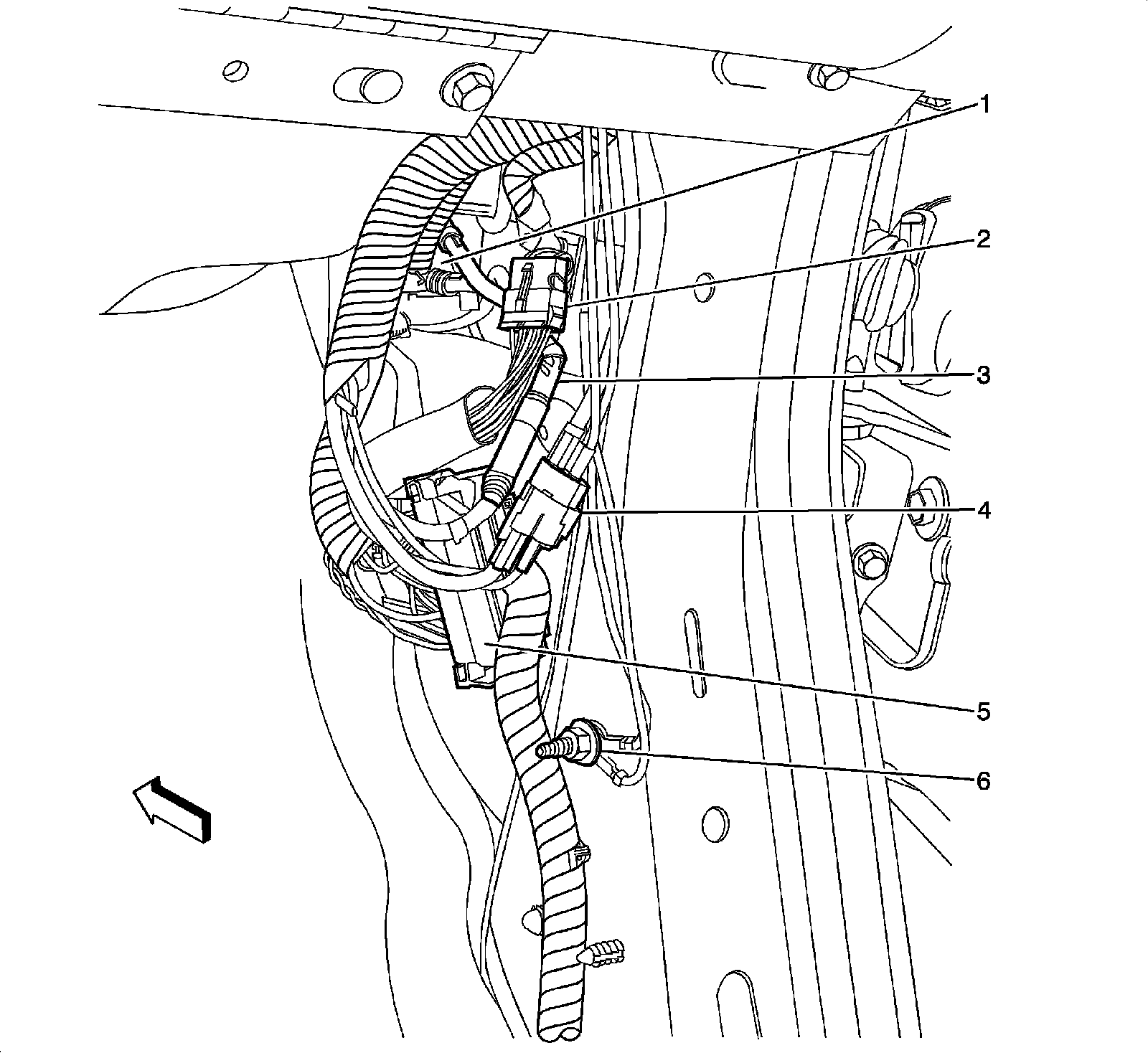

Behind Right Side Kick Panel
1 - FM Modulator (UWF/UWG)
2 - Controller to FM Modulator Connector (UWF/UWG)
3 - Radio Antenna Coax Connector
4 - C236
5 - C298
6 - G203
Power and Grounding Component Views
Behind Right Side Kick Panel
1 - FM Modulator (UWF/UWG)
2 - Controller to FM Modulator Connector (UWF/UWG)
3 - Radio Antenna Coax Connector
4 - C236
5 - C298
6 - G203
