C210

Sunroof Component Views

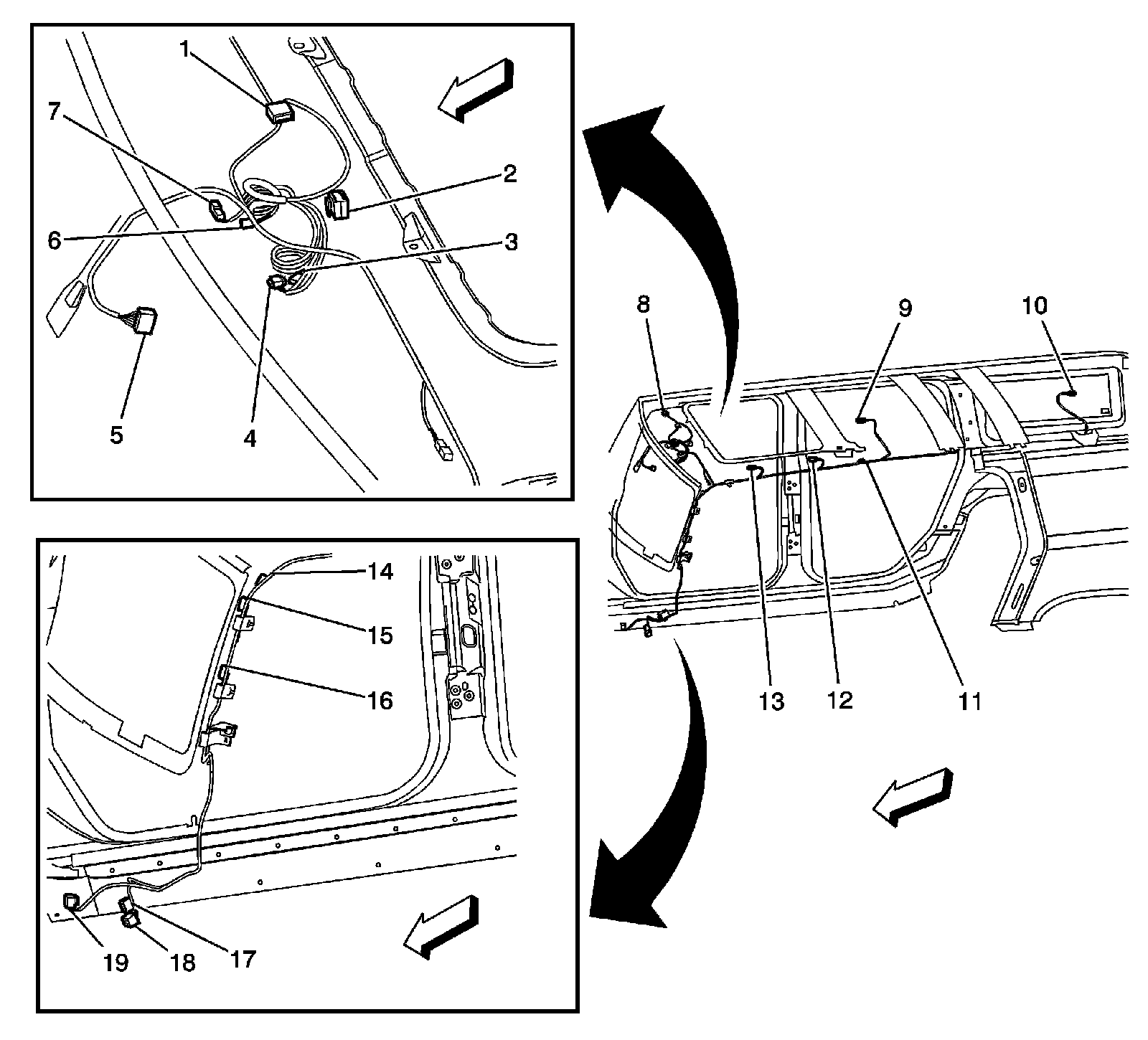

Headliner Harness Routing




1 - Sunroof Module Connector
2 - Sunroof Switch Connector
3 - Courtesy/Reading Lamp-Left Front Connector
4 - Garage Door Opener Connector
5 - Inside Rearview Mirror Connector
6 - Courtesy/Reading Lamp-Right Front Connector
7 - Noise Cancellation Microphone Connector
8 - Vanity Mirror-Right Connector
9 - Courtesy Reading Lamp-Center
10 - Courtesy Reading Lamp-Rear
11 - S300
12 - Ambient Air Temperature Sensor Connector
13 - Cellular Telephone Microphone Connector
14 - S305
15 - S301
16 - S302 (CF5)
17 - Relay Block-I/P C4
18 - Relay Block-I/P C3
19 - C210



Harness Routing Views

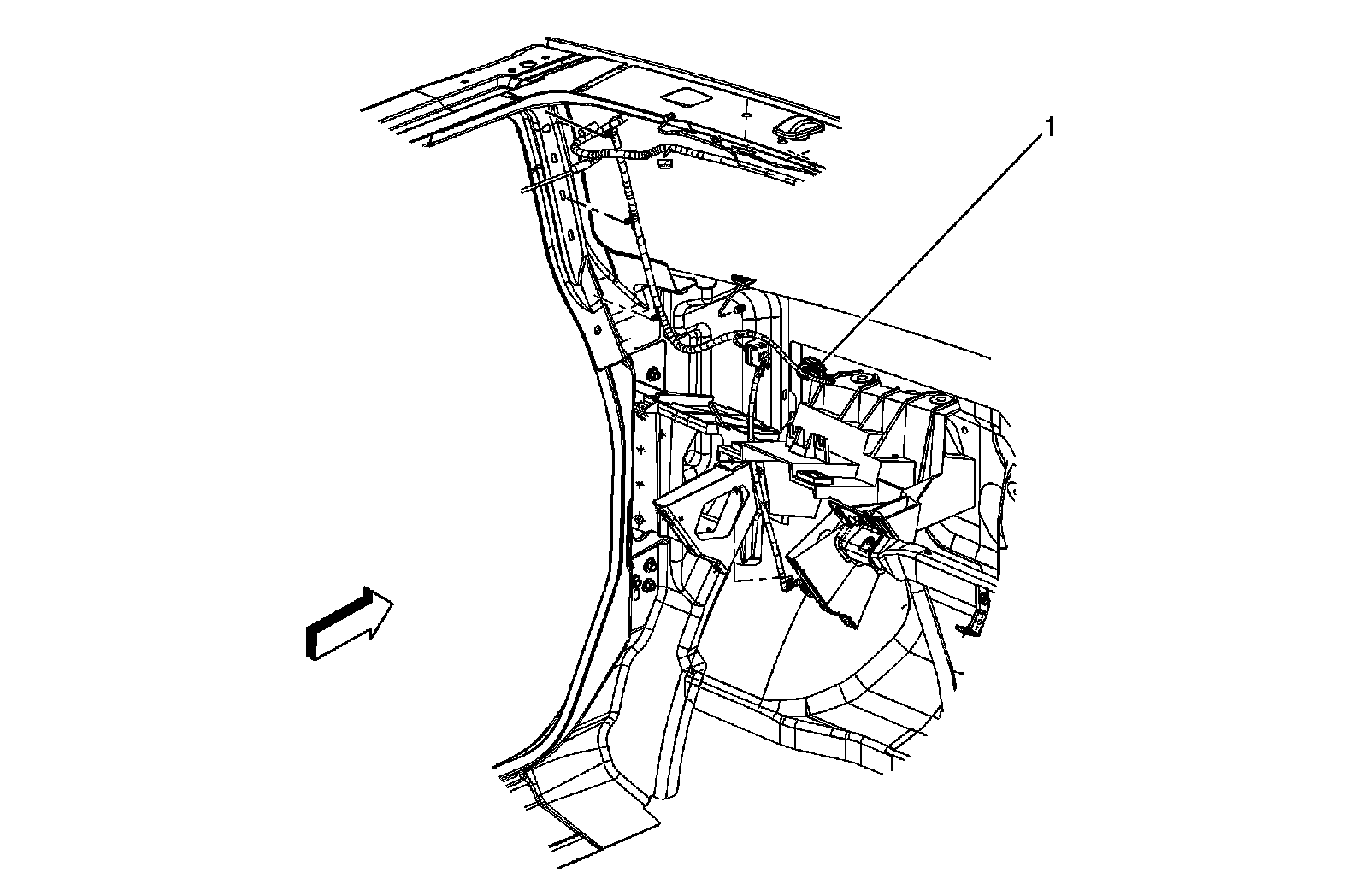

C210




1 - C210 Headliner Harness Side
