C104

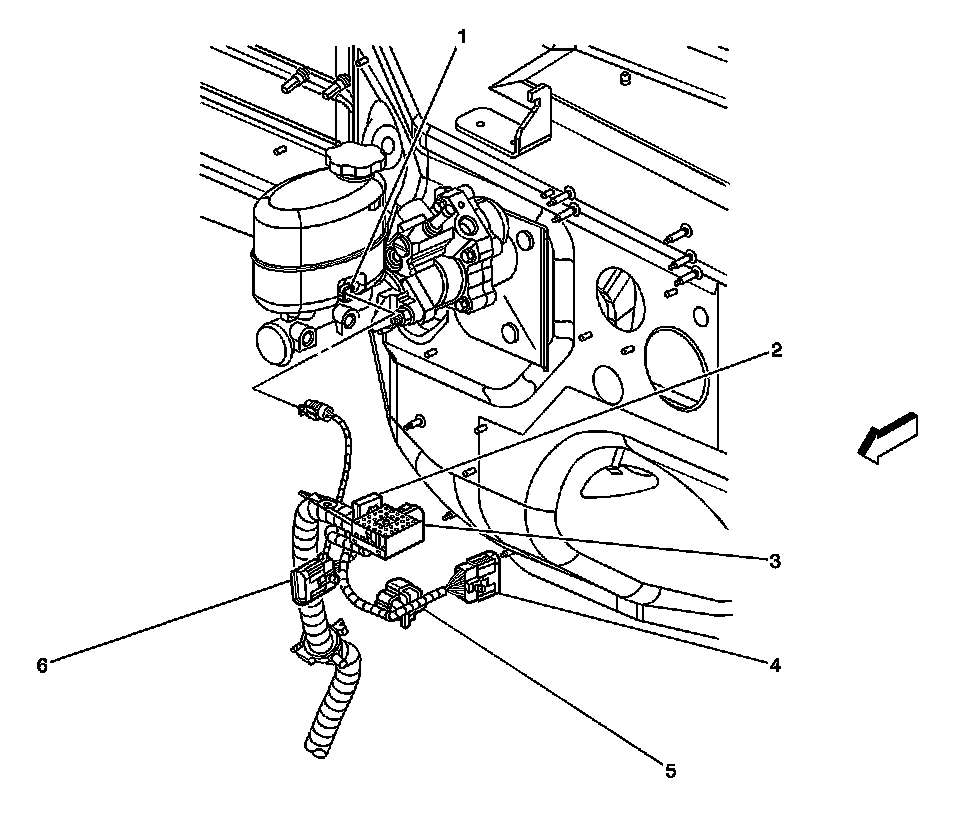

Harness Routing Views

C101,C104 and C106




1 - Brake Fluid Level Switch
2 - Fuse Block-Underhood-C9
3 - Fuse Block-Underhood-C3
4 - C101-Chassis Harness Side
5 - C106-Chassis Harness Side
6 - C104-Chassis Harness Side
