C100

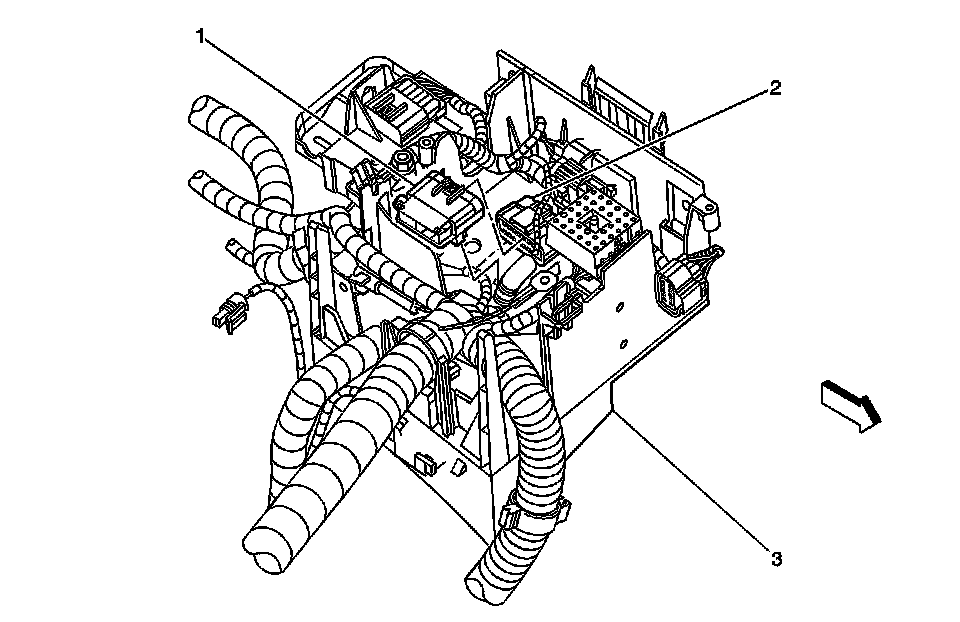

Harness Routing Views

C100




1 - C100-Engine Harness Side
2 - C100-IP Harness Side
3 - Fuse Block-Underhood
