Midgate Latch - Right (SUT)
Midgate Latch - Right (SUT)
Window Systems Connector End Views

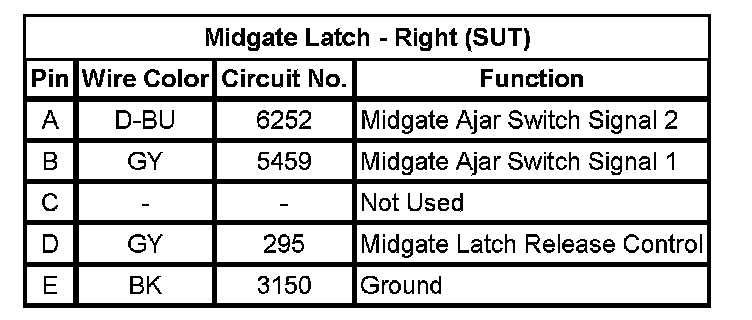

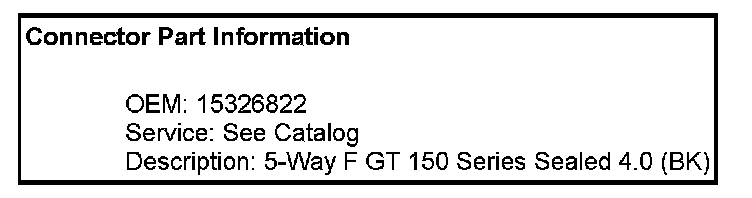

Midgate Latch - Right (SUT)
