Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Suspension Control ( Automatic - Electronic ) >> System Diagram

System Diagram



Air Suspension Connector End Views

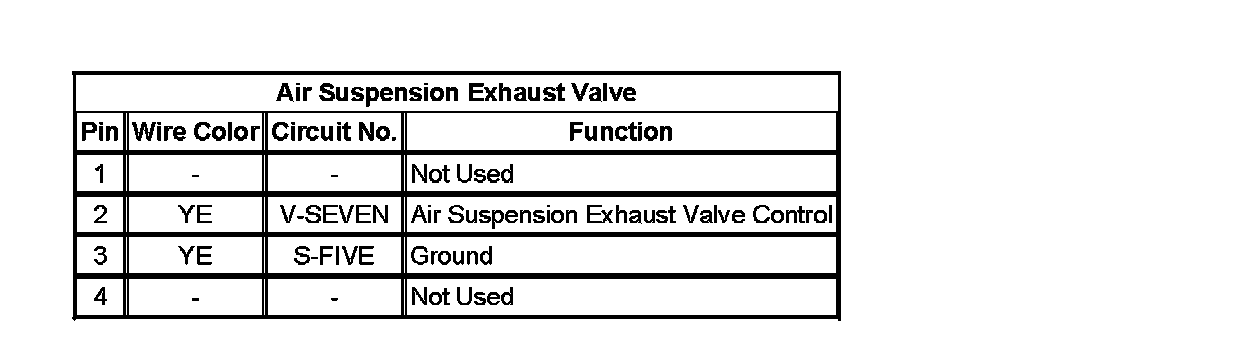

Air Suspension Exhaust Valve







Air Suspension Exhaust Valve:

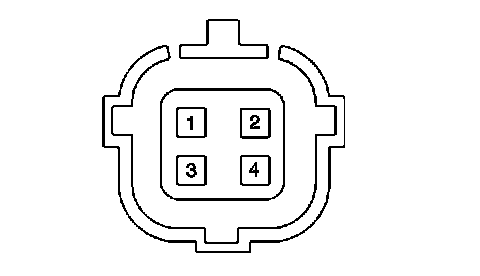

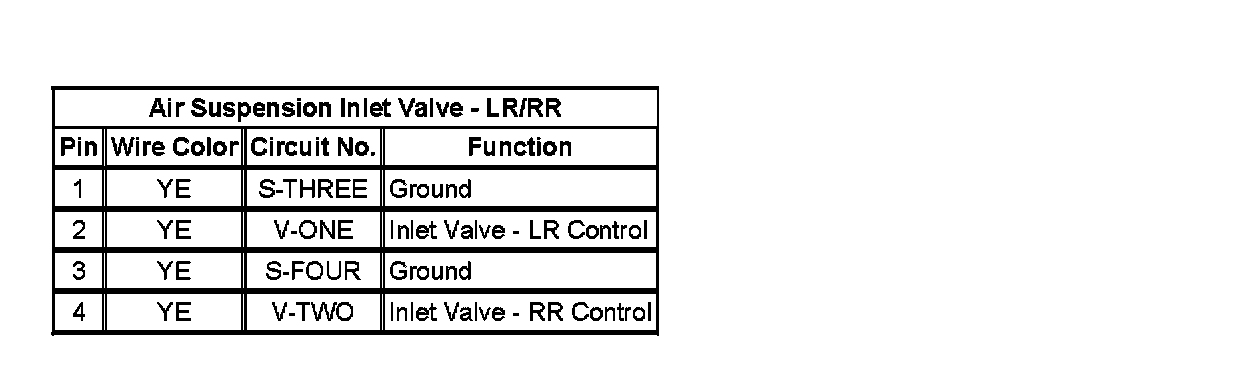

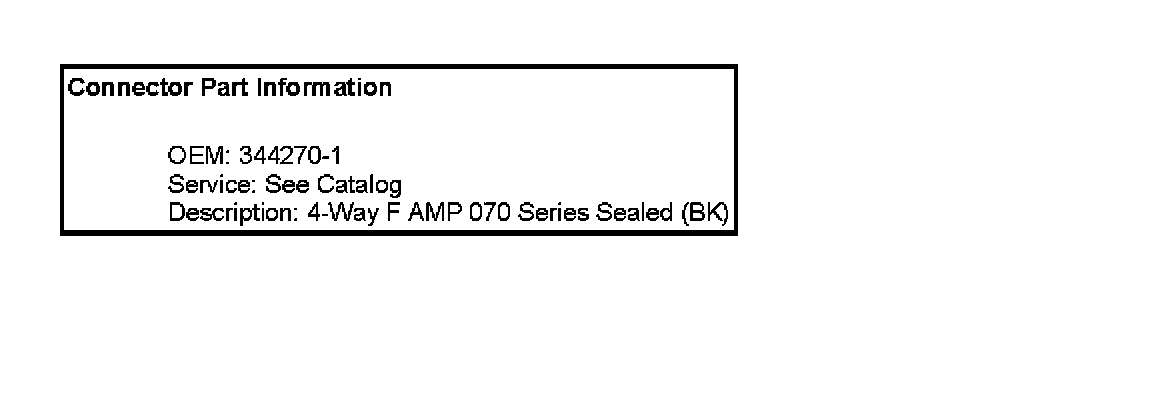

Air Suspension Inlet Valve - LR/RR







Air Suspension Inlet Valve - LR/RR:
