Suspension Mode Switch

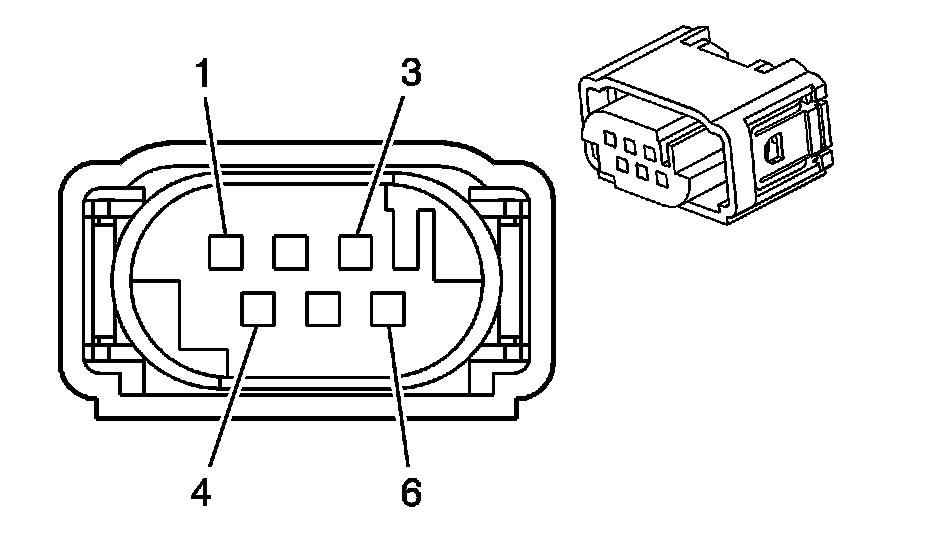

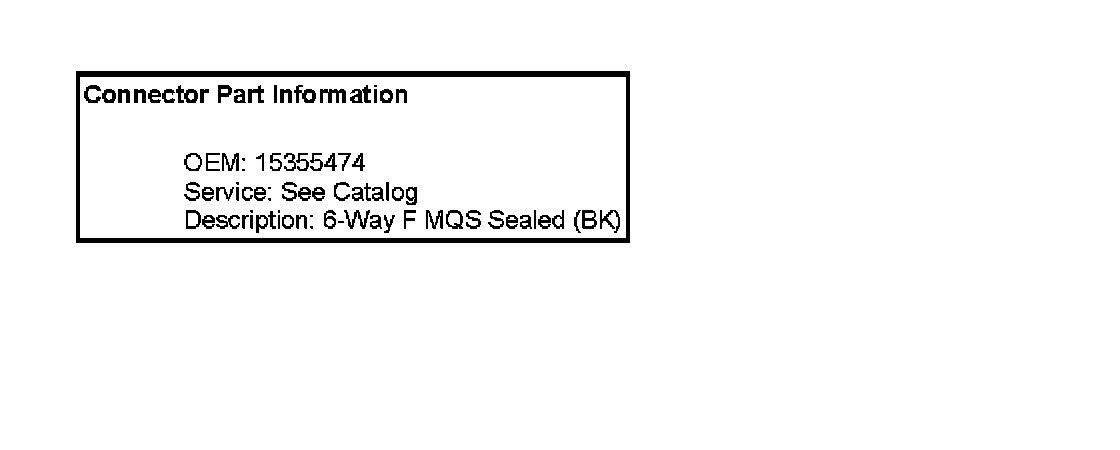

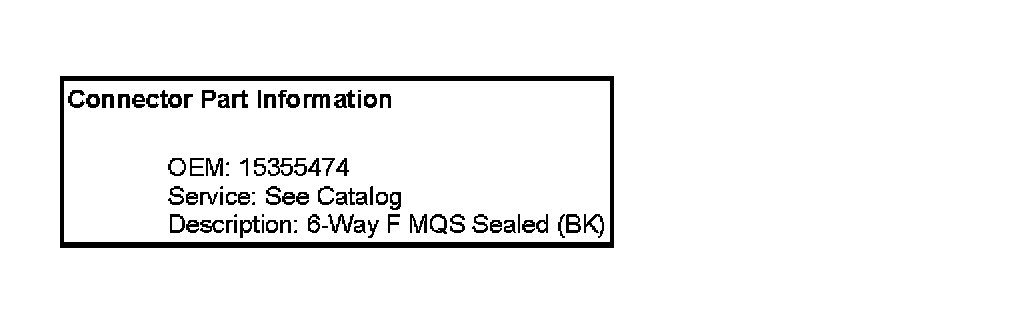

Air Suspension Connector End Views

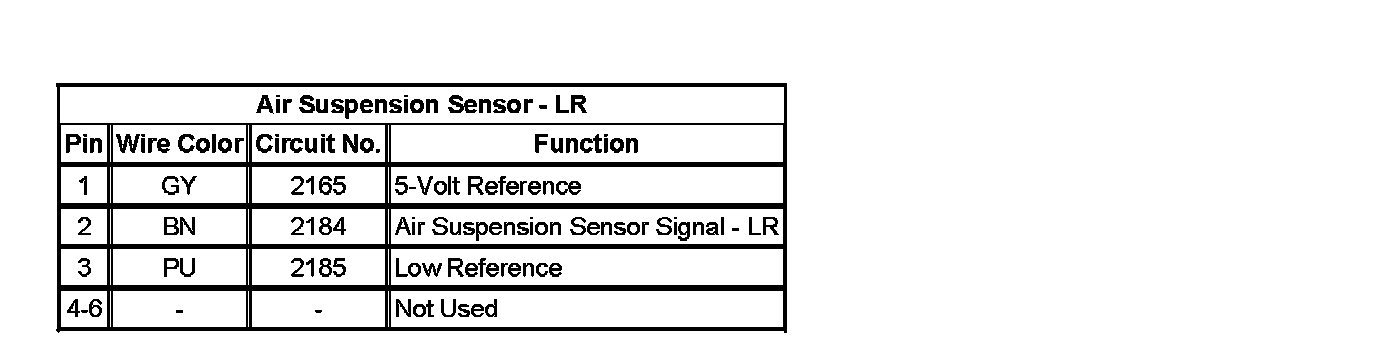

Air Suspension Sensor - LR:

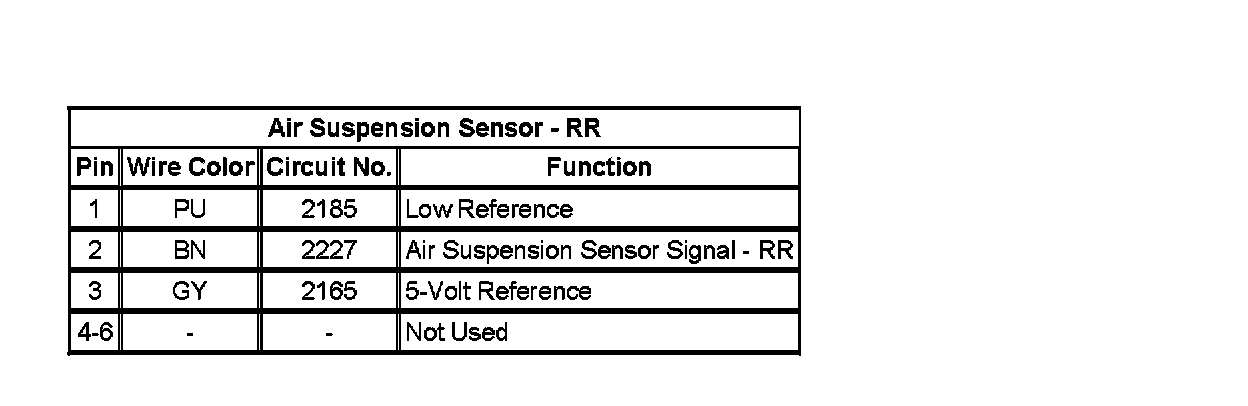

Air Suspension Sensor - RR:
