Suspension Control Pressure Sensor/Switch

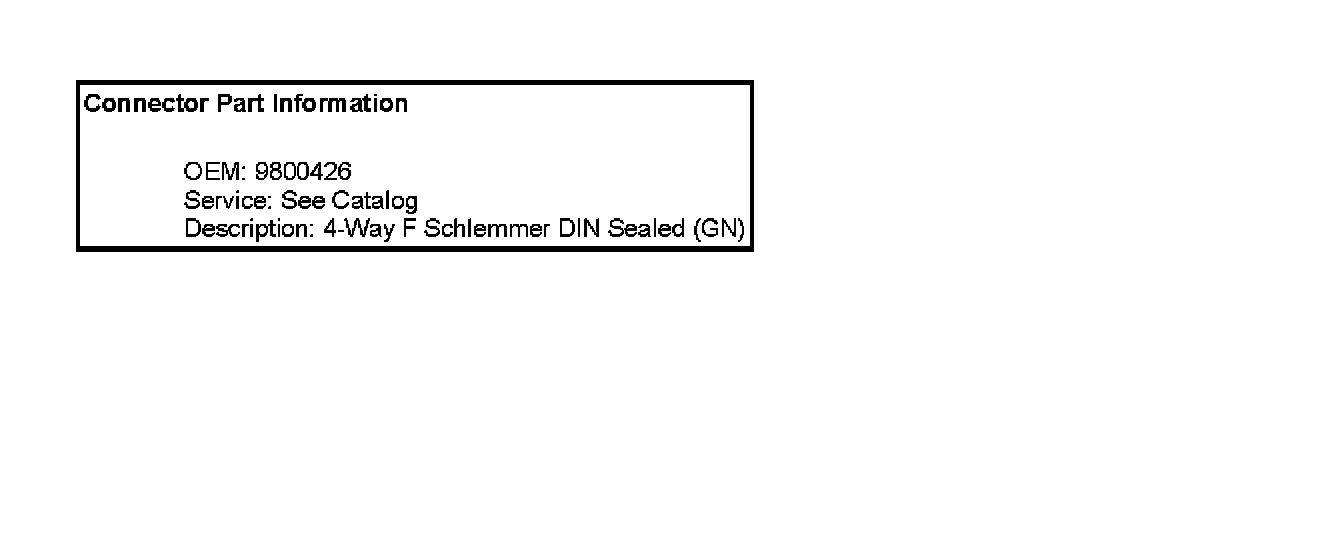

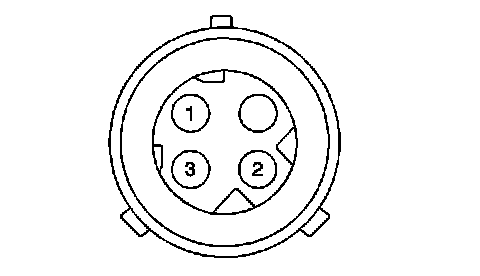

Air Suspension Connector End Views

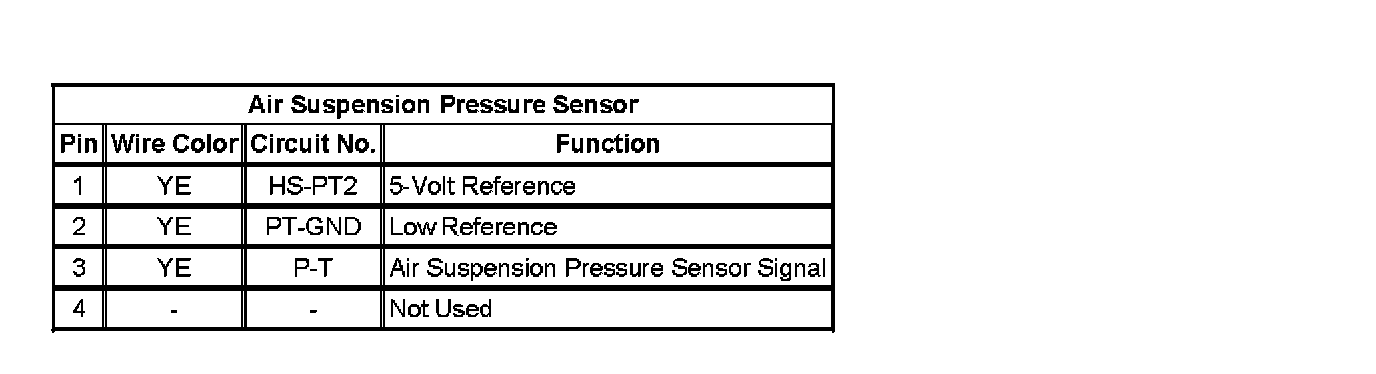

Air Suspension Pressure Sensor:
